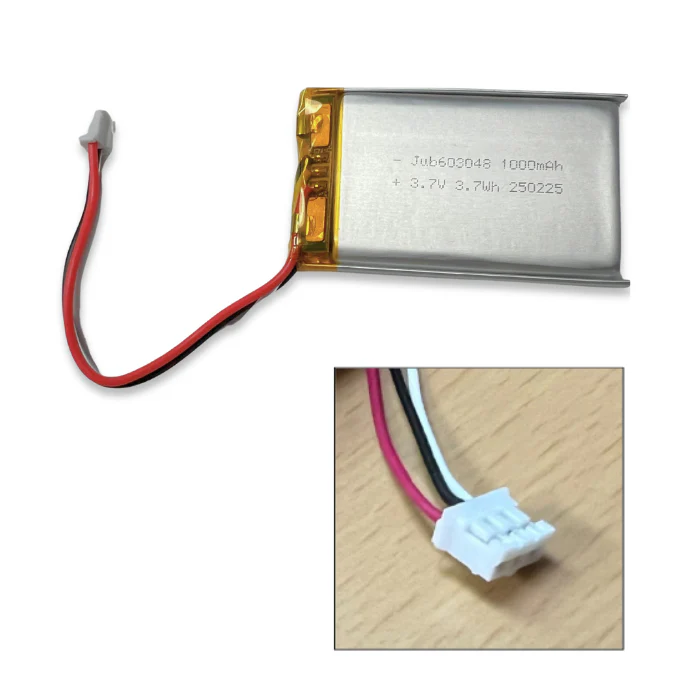

Specialty 3-pin JST PH 3.7V Rechargeable Lithium Polymer Battery for RAK19026 or Board ONE 3-pin
***WARNING BATTERIES CAN ONLY BE SHIPPED VIA GROUND- expedited ship options will not show at checkout if battery in cart***
Check polarity match (red and black cable order)
Compatible with RAKwireless RAK19026 v2 board, BoardONE boards
This is a special 3-pin connector battery designed for use with the RAK19026 board, or as a replacement for the RAKwireless WisMesh Pocket all-in-one device.
It is also compatible with the RAK Board ONE 3 pin version.
Choose 1000 mAh or 3200 mAh version by cart button
This will not work with other boards that require a 2-pin connection.
Specifications for 1000 mAh:
- Typical Capacity
- 1000mAh
- Nominal Voltage
- 3.7 V
- Max Charge Current
- 1000mAh
- Max Loading Current (peak value)
- 1000mAh
-
Operating Temperature:
- Charge temperature: 0-10°C (Maximum 0.2C)
- Cut-off voltage: 4.1V
- Discharge temperature: 10-45°C (Maximum 0.5C)
- Cut-off voltage: 4.2V
- Working temperature range: 10-60°C
- Charge temperature: 0-10°C (Maximum 0.2C)
- PCM over/under charge protection
- Dimensions 49.7mm x 29.7mm x 5.8mm (+/- 2mm)
- 3-pin JST PH connector type
Specifications for 3200 mAh:
- Typical Capacity
- 3200mAh
- Nominal Voltage
- 3.7 V
- Max Charge Current
- 3200mAh
- Max Loading Current (peak value)
- 3200mAh
-
Operating Temperature:
- Charge temperature: 0-10°C (Maximum 0.2C)
- Cut-off voltage: 4.1V
- Discharge temperature: 10-45°C (Maximum 0.5C)
- Cut-off voltage: 4.2V
- Working temperature range: 10-60°C
- Charge temperature: 0-10°C (Maximum 0.2C)
- PCM over/under charge protection
- Dimensions 64mm x 42mm x 9mm (+/- 2mm)
- 3-pin JST PH connector type
