This item may be priced higher due to recent tariffs. While we do our best to absorb and mitigate, it is not always possible. If tariff rates come down, this price may drop. When buying from Rokland, items ship FREE from USA (to other US locations) so no additional shipping applies.

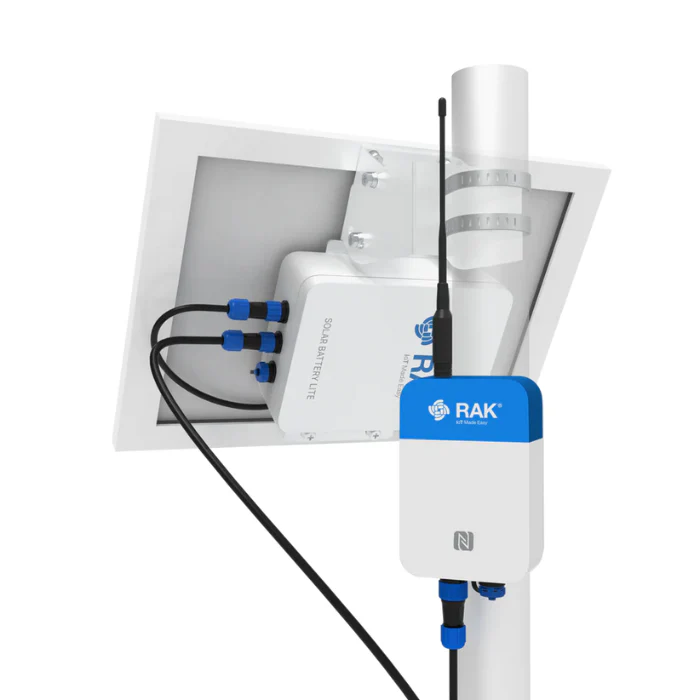

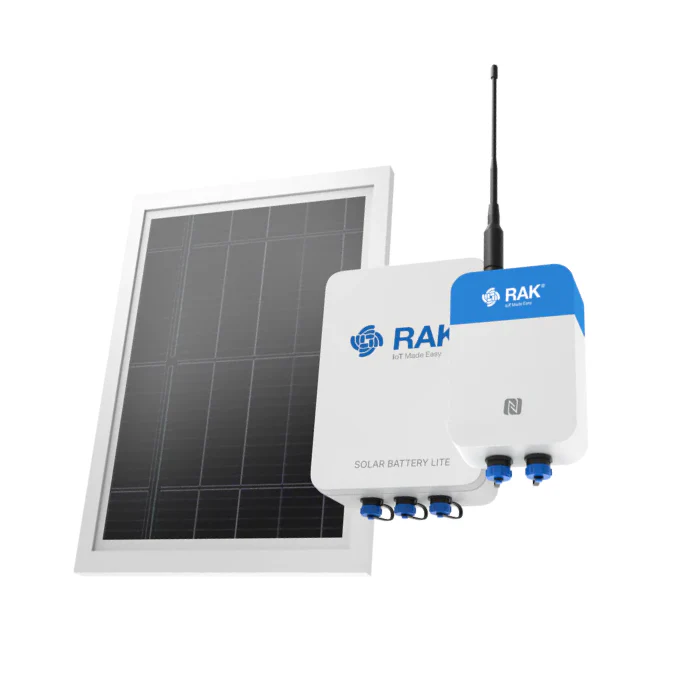

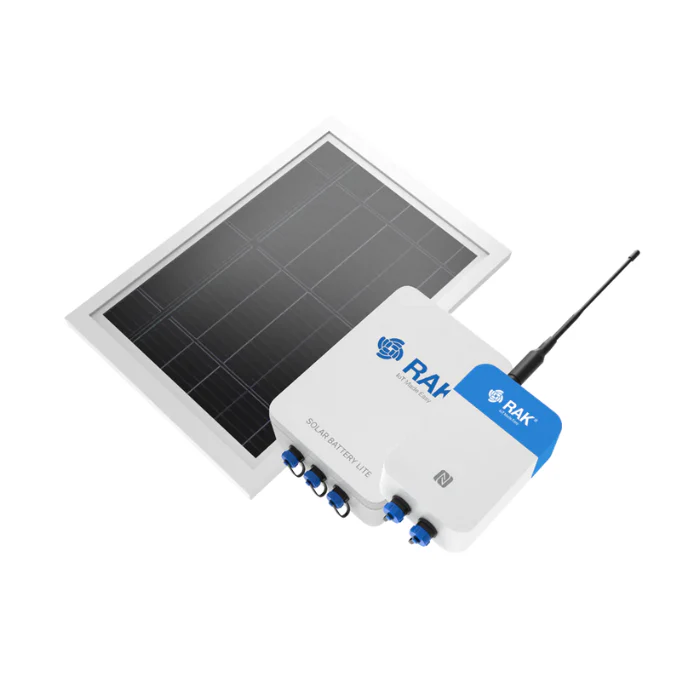

WisMesh Repeater is a ready-to-use Meshtastic-compatible solar repeater system designed to extend the range of the Meshtastic LoRa® Mesh network.

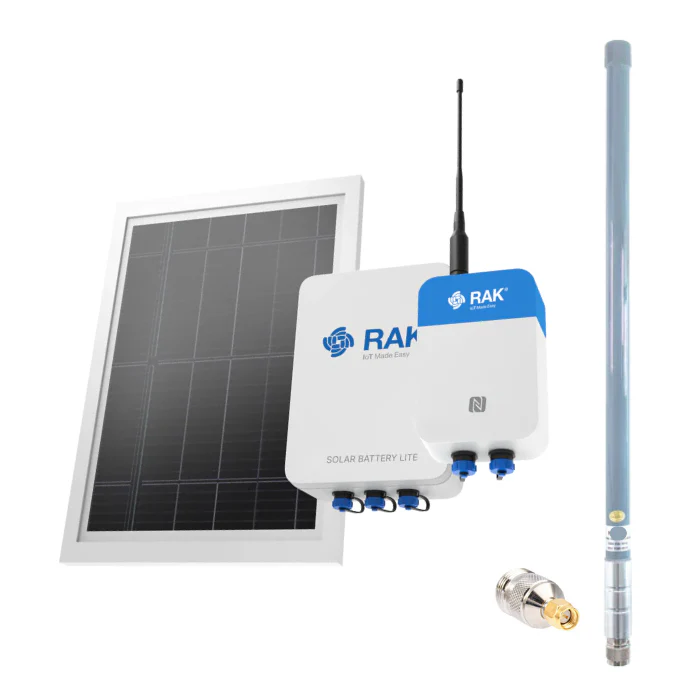

Choose antenna configuration: includes 2.5 dbi whip antenna, or (optional) add 5 dBi fiberglass N-male antenna with RP-SMA conversion piece.

It comes with the WisMesh Repeater base station, RAK9154 high capacity outdoor IP67 5200 mAh battery pack, and a 10.5 x 10.5 inch Mono-Crystalline Silicon solar panel.

Mounting hardware and connection cables are included.

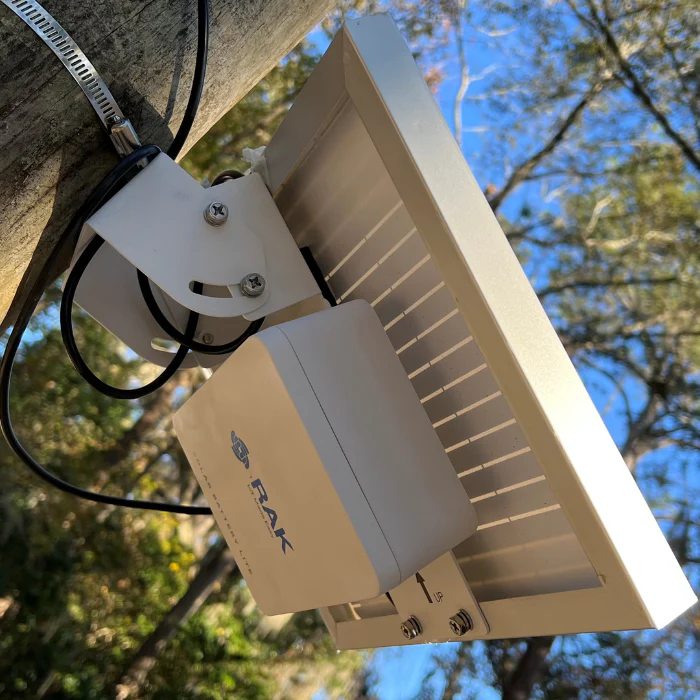

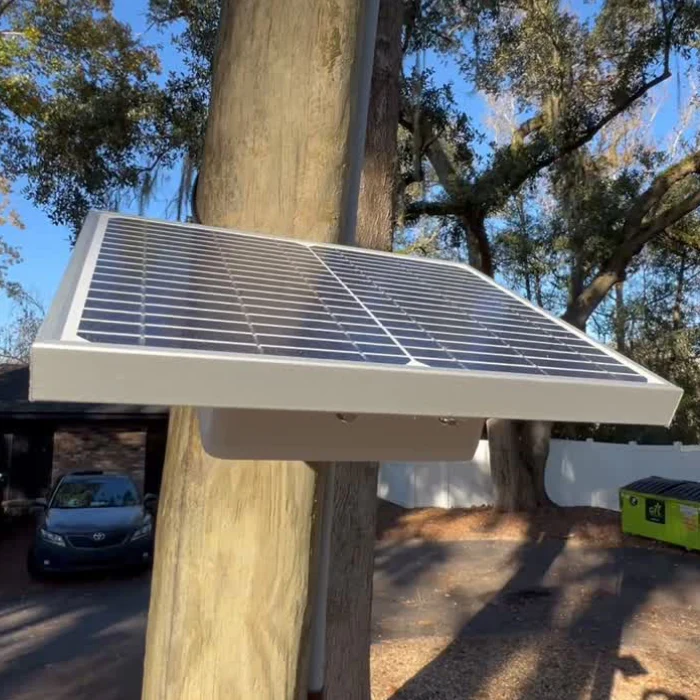

Built with an IP67-rated durable enclosure and connectors, it also supports both wall and pole mounting.

Why You Need WishMesh Repeater

WisMesh Repeater is built for reliable, long-range Meshtastic communication in areas with no power or infrastructure. Designed for tough outdoor conditions, it ensures continuous connectivity for remote networks, emergency setups, and off-grid use cases—all with minimal maintenance and solar-powered operation.

Why it’s useful:

• Extends Range – Strengthens and extends Meshtastic LoRa mesh networks in remote areas.
• Solar-Powered – Runs on sustainable solar energy, reducing maintenance and power concerns.
• IP67-Rated – Waterproof and dustproof, ideal for harsh outdoor conditions.
• Low Power Consumption – Efficient design ensures reliable operation with minimal energy use.
• Flexible Power Options – Works with the included solar battery or a custom power setup.
• Easy Deployment – Supports wall or pole mounting for quick and secure installation.

Key Features of WisMesh Repeater

• Meshtastic Repeater
  • WisBlock RAK4631 nRF52840 LoRa module
    • Pre-flashed with the Meshtastic firmware
    • Bluetooth Low Energy 5.0 protocol stack
    • Ultra-low-power MCU
    • 32-bit ARM® Cortex-M4F CPU
    • 64 MHz CPU clock
    • 1 MB Flash, 256 KB RAM
    • Semtech SX1262 LoRa transceiver
    • US 915 Mhz frequency (can be configured for EU 868 but requires different antenna- please contact us for antenna swap
• Solar Battery Station with Regular Panel: Designed for normal use and ideal for areas with average sunlight exposure, this pairs the RAK9154 battery with a 10 W (27 cm x 27 cm) solar panel—a consistent and reliable choice for most users.
  Features:
  • Battery capacity: 5.2 Ah
  • Battery Voltage：10.8 V
  • Total Power Capacity：56.16 Wh
  • Battery Efficiency：0.9
  • Operating temperature: -20～60° C

  • Integrated BMS and heater

Key Benefits of WisMesh Repeater

A repeater keeps your Meshtastic network connected when direct communication fails. It helps in three key ways:

• Fixing network gaps: If two nodes are too far apart or blocked by obstacles, a repeater bridges the connection.
• Increasing reliability: If a node goes offline, a repeater keeps the network stable.
• Extending coverage: A repeater extends signal range in resource-scarce environments.

Use Case #1

Professional-grade Meshtastic solar repeater networks rely on the WisMesh Repeater for continuous coverage in remote locations. Its rugged design and solar power make the device ideal for long-term, off-grid deployments.

Use Case #2

The WisMesh Repeater ensures reliable Meshtastic Relay functionality, bridging gaps in LoRa mesh networks. It keeps communications stable in areas with difficult terrain or unpredictable connectivity challenges.

Comparison: WisMesh Repeater vs. WisMesh Repeater Mini

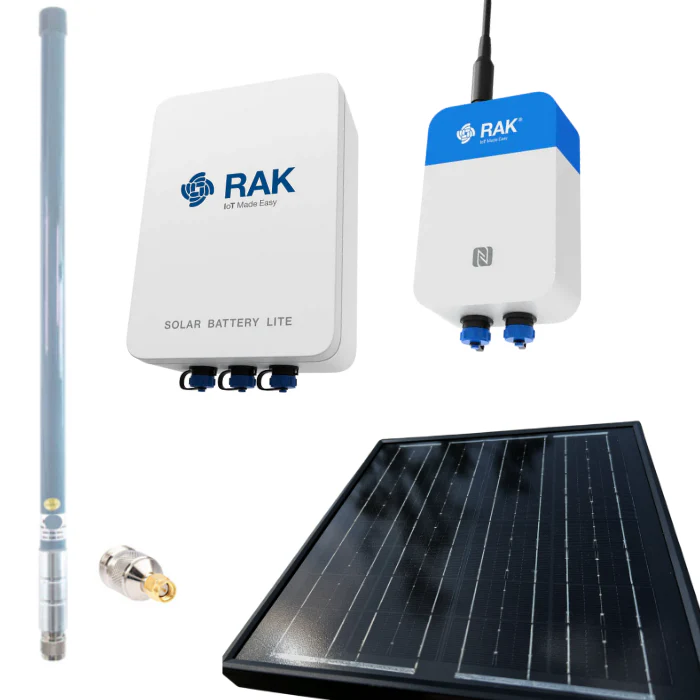

What's in the Box

• • 1 pc WisMesh Repeater
  • 1 pc LoRa Antenna (RP-SMA)
  • 1 pc Wall Mounting for Repeater
  • 1 pc Pole Mounting for Repeater
  • 1 screw set
  • 1 pc Solar Battery Station RAK9154
  • 1 pc Solar Panel
  • 1 pc Mounting Kit for Solar Battery Lite and Solar Panel

How to Get Started with WishMesh Repeater

• WisMesh Repeater Quick Start Guide
• Rokland Setup Guide
• Meshtastic Installation and Usage Guide
• Meshtastic Router/Repeater Configuration
• Solar Battery Lite Datasheet
