RAKwireless WisMesh BaseBoard RAK19026 v2 OLED Mounted + GNSS & Motion Sensor PID 115125
This is v2 featuring a 3-prong battery connection that will not fit with our other batteries. See compatible battery here.
The WisMesh Base Board Rak19026 comes with a nRF52840Ā RAK4630Ā LoRa module pre-flashed with the Meshtastic firmware. It integrates a 1.3āĀ Ā OLEDĀ display, onboardĀ GNSSĀ location module (u-blox ZOE-M8Q), onboard motion sensor (STĀ LIS3DH) and additional three WisBlock Sensor and one WisBlockĀ IOĀ module slot. This combination includes everything required to build a Meshtastic device matching your own requirements.
An integrated on/off power switch allows for full power control.
For improved user experience, it has an integrated user programmable button and an on/off switch that disconnects the battery complete from the electronics but allows to recharge the battery throughĀ USBĀ or solar battery.
With the MeshtasticĀ Getting Started GuideĀ theĀ WisMesh BaseBoardĀ is ready for use within a short time.
Product Features
- RAK4630 WisDuo module, pre-flashed with the Meshtastic firmware
- Nordic nRF52840:
- Ultra-low-power MCU
- 32-bit ARMĀ® Cortex-M4F CPU
- 64MHz CPU clock
- 1 MB Flash, 256 KB RAM
- Semtech SX1262:
- Low power high range
- LoRaĀ® transceiver
- Nordic nRF52840:
- US 915 Mhz version
- 3 sensor slots
- 1 IO slot
- Battery switch
- User button
- Connector for OLED display
- GPIO exposure on pin header
- 1.3ā OLED display (pre-mounted or optional connected through a pin header)
- U-Blox ZOE-M8Q GNSS location module onboard
- ST LIS3DH motion sensor onboard
- LoRa and BLE antenna included
- Connector for JST 3-pin battery, see battery option here

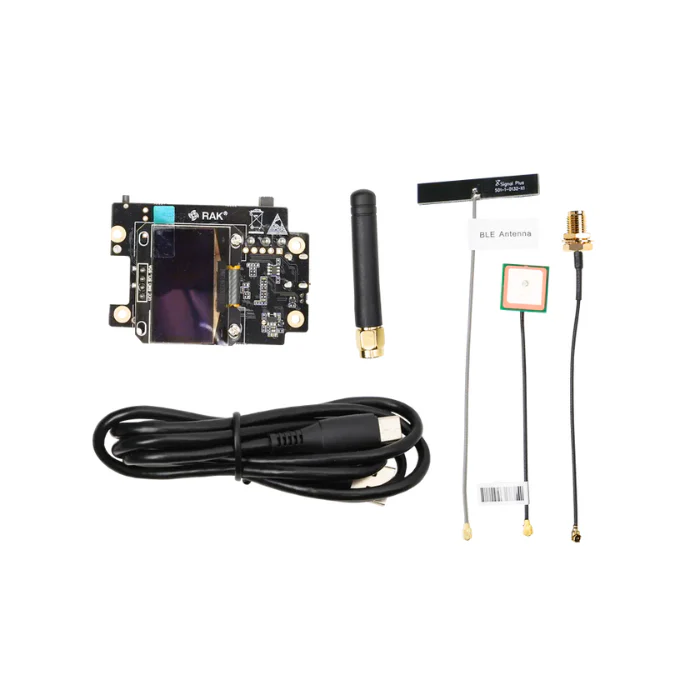

Product Inclusions
- 1 pc RAK19026 WisMesh Base Board
- 1 pc OLED display connected and soldered (use caution and care when handling LED screen)
- 1 pc LoRa antenna with ipex to SMA cable
- 1 pc BLE antenna
- 1 pc GPS antenna
- 1 pc USB cable
Documentation
Warranty & Support:
ComplimentaryĀ Telephone and Email/Live Chat SupportĀ (Click Here)
OnlineĀ Technical Manuals and InstructionsĀ (Click Here)
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
Dev board return policy
Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with aĀ 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return. Contact your Rokland support technician for assistance troubleshooting or understanding return eligibility.Ā
