RAKwireless WisGate Edge Prime (Version 2) 8 channel Outdoor LoRaWAN Gateway RAK7240CV2 US915 LTE (EG95-NA) 716140

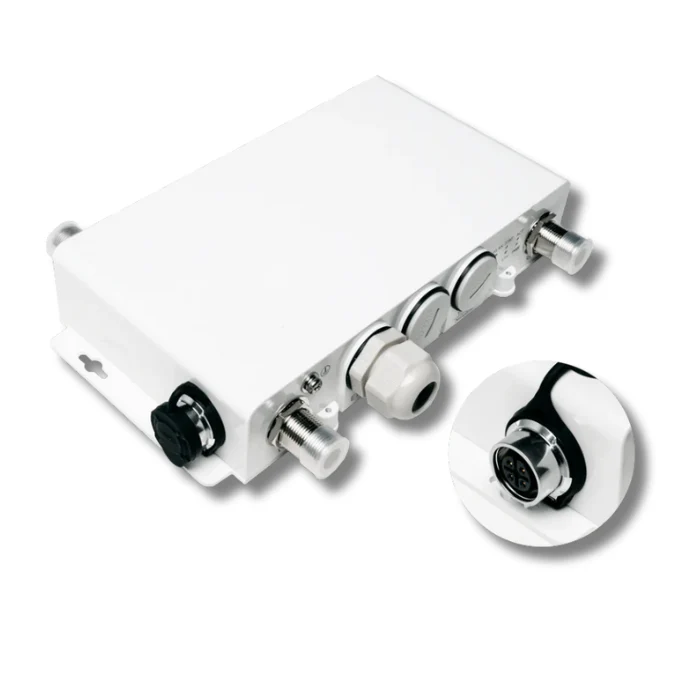

WisGate EdgeĀ Prime Version 2Ā (RAK7240V2/RAK7240CV2) is RAKās newest outdoorĀ gateway for LoRaWAN.
It is based on the latestĀ SX1303 LoRa core, providing better sensitivity and improved performance. The gateway is available in 8 or 16-channel versions to help you utilize the maximum of the available LoRaWAN channels in your region.
The gateway supports multi-backhaul with Ethernet, Wi-Fi, and Cellular connectivity.
There are two options regarding the supported power supply: This unit supports only PoE power, and separate SKU 716175 is equipped with a dedicated port for different power options such as DC power input (9~24VDC) and our Battery Plus.Ā
The device comes with the newestĀ WisGateOS 2Ā which provides all the existing features but adds a new design, many options, and tooltips. It comes with extension add-ons ā an option to add and manage additional features catering to your needs.
The gateway can be managed remotely via theĀ WisDM platform.
The RAK7240V2/RAK7240CV2 is suited for any use case scenario, be it rapid deployment or customization regarding UI and functionality.Ā
The flat surface of the full metal enclosure allows your logo to be added for brand customization and recognition.
Supported LoRaWAN Network Servers:Ā Chirp Stack v3/v4,Ā TTN/TTS,Ā AWS IoT Core for LoRaWAN,Ā AWS IoT core integration,Ā ActilityĀ LNS with Basics Station (8-channel only).
Note: The cellular option is only available for the 8-channel LoRaWAN gateway.Ā
Features
- Hardware
- IP65 industrial-grade enclosure with cable glands
- PoE (802.3af) + Surge Protection
- Dual LoRa Concentrators for up to 16 channels
- Backhaul: Wi-Fi, LTE (for the 8-channel version) and Ethernet
- GPS
- Supports DC 9~24V, RAK Battery Plus (optional)
- External antennas for Wi-Fi, GPS, and LTE, External antenna for LoRa
- Dying gasp
- Software
- WisGateOS 2
- Extension add-ons
- Built-in Network Server
- LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for the Built-in server is coming soon)
- Basics Station and Packet forwarder
- LoRaĀ Frame filtering (node whitelisting)
- MQTT v3.1 Bridging with TLS encryption (compatible with ChirpStack LNS)
- Buffering of LoRa frames in Packet Forwarder mode in case of NS outage (no data loss)
- Fine timestamping (optional)Ā
Package Inclusion
Note: The LoRa antennas are not included in any package. They need to be bought separately, one for the 8-channel variant and two for the 16-channel variant.
- 8 Channels with 4G*
- 1x 8-channel device with LTE module
- 2x LTE Antenna
- 1x GPS Antenna
- 1x 2.4G Wi-Fi Antenna
- 1x PoE Injector
- 1x Mounting Kit
- 1x Manual
*Version with the DC and Battery Plus support included a matching cable with connector.
Documentation
Warranty & Support:
ComplimentaryĀ Telephone and Email/Live Chat SupportĀ (Click Here)
OnlineĀ Technical Manuals and InstructionsĀ (Click Here)
