Rokland is a Gold Level distributor for RAK Wireless. When comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship FREE from USA (to other US locations) so no additional shipping or tariffs apply.

This solution includes everything to power the WisGate Edge Pro or WisGate Edge Prime (with Battery Plus support) gateway with Solar energy anywhere where reliable LoRaWAN coverage is needed.

Choose between 2 variants before adding to cart

Variant 1: Battery Plus package (battery only)
Variant 2: Battery Plus with Solar Panel

Battery Plus, combined with the Solar Panel Kit, is the latest RAK battery system incorporating a solar panel, mounting kit, solar charging system, and status monitoring. It is specially developed for the WisGate Edge Pro and WisGate Edge Prime(with Battery Plus support) gateways. It will allow reliable outdoor deployment of the gateway in remote off-grid scenarios where the power is unreliable or inaccessible. Not only will your gateway be powered 24/7, but you will also get all the battery information and status in the WisGateOS Web UI locally and in the WisDM platform remotely.

With this 50ah battery, your gateway can run for more than 5 days without sun. The 80W panel is specially selected to meet the needs of the Battery Plus system and with the included mounting kit the solution can be deployed quickly and easily.

Enhance your commercial and large-scale deployments with the RAK Battery Plus, backed by a Product/Public Liability Certificate of Insurance for unparalleled reliability and risk mitigation in even the most remote locations.

Battery Plus Features

• Long Life Span - The Lithium Iron Phosphate battery can be expected to remain serviceable for more than 10 years, considering that it is charged and discharged once a day at room temperature (25°C).
• Integrated Heating Function - The battery integrates a solar charger and heater, it can be connected to PV panels directly and charged under 0°C.
• Lightweight Design - The weight of RAK9155 is no more than 8kg making installation by a single person easier.
• High Waterproof Grade - With an IP65 rating of the enclosure, RAK9155 is suitable for both indoor and outdoor environments.

Solar Panel Kit Features (included with the RAK Battery Plus & Solar Panel kit variant)

• Peak power: 80 W
• Open circuit voltage (Voc): 24.4V
• power voltage (Vmp): 20.5V
• power current (Imp): 3.90A
• Dimensions: 795x580x30mm
• Operating temperature: -40°C to +85°C
• The pole diameter supported by the mounting kit is 50-100 mm

Note:

Change Notification for Solar Panel

Change Notification for Battery Plus

Bundle Inclusion

• Battery Plus power solution with 50Ah battery
• Solar Panel with mounting kit (if selected)
• All cables for the connection between the Solar Panel, Battery Plus, and gateway are included

Package Inclusion

• 1pc Solar Battery
• 3pcs Power Cable
• 1pc Mounting Kit
• 3pcs Cable trap-Screw Mount
• 1pc Carry equipment


Battery Plus Data Sheet

Battery Plus QuickStart Guide

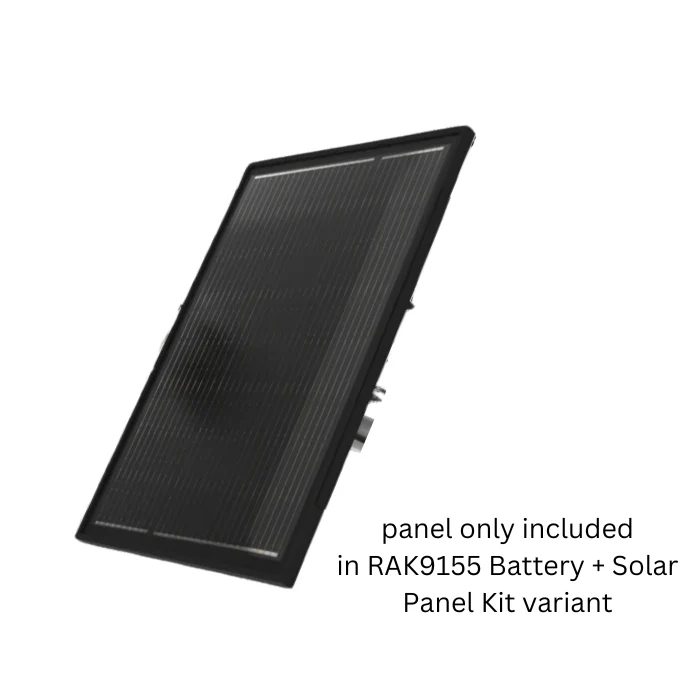

Solar Panel Details

80W-20.5V Monocrystalline
Silicon Solar Panels, including:
⚫ Enhanced solar cell efficiency: over 23.5%
⚫ Sleek dimensions and modern materials
⚫ 25-year lifespan with robust warranty terms
⚫ Comprehensive certifications: CE, IEC61215, ISO9001:2015, RoHS

Solar Panel Installation Instructions

Warranty & Support:
