RAK2287 Gateway Concentrator Module for LoRaWAN, SX1302 LoRa core
Rokland is a Gold Level distributor for RAK Wireless. When comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland,Ā items ship FREE from USA (to other US locations) so no additional shipping or tariffs apply.

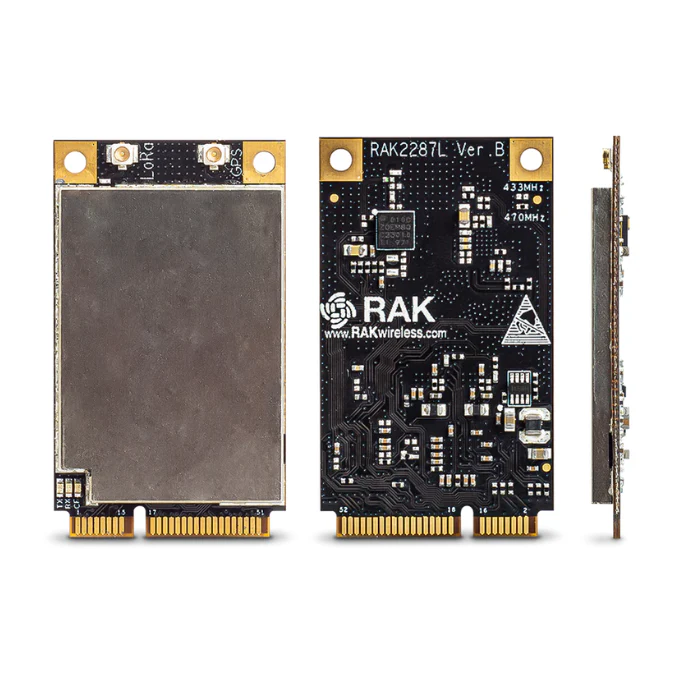

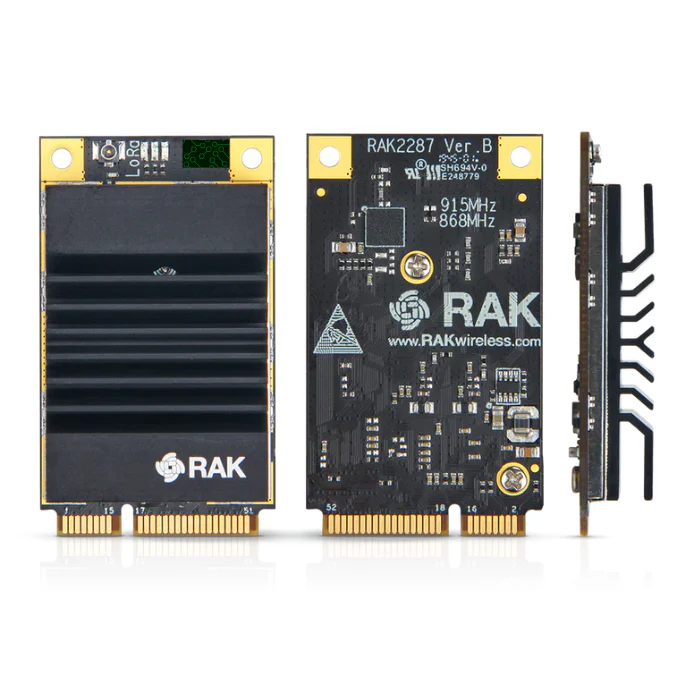

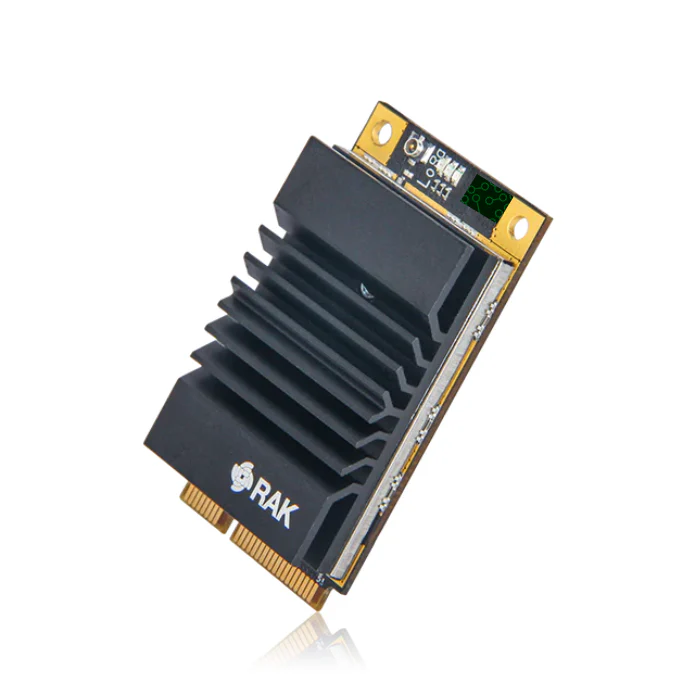

RAK2287Ā is an LPWAN Concentrator ModuleĀ with a mini-PCIe form factorĀ based onĀ Semtech SX1302Ā LoRa chip.Ā
This module is an exceptional, complete, and cost-efficient gateway solution offering up to 10 programmable parallel demodulation paths, an 8 x 8 channel LoRa® packet detector, 8 x SF5-SF12 LoRa® demodulators and 8 x SF5-SF10 LoRa® demodulators. It is capable of detecting an uninterrupted combination of packets at 8 different spreading factors and 10 channels with continuous demodulation of up to 16 packets. The module is well suited for Internet-of-Things (IoT) applications, that require node density of up to 500 nodes per km² in an environment with moderate interference.
Key FeaturesĀ
- Designed with size efficiency in mindĀ (mPCIeform factor).
- Built around the newly releasedĀ SX1302Ā baseband processor.
- Compatible withĀ 3G/LTEcard of mPCIe type (3V power domain).
- Tx power up toĀ 27dBm, Rx sensitivity down toĀ -139dBm@SF12, BW 125 kHz.
- SPI interface
Product Inclusions
- 1x RAK2287
- NO Ipex LoRa Antenna included
- Choose variant above cart button for correct needed configuration
Documentation
- Quick Start Guide
- Datasheet
- RAK2287 + Raspberry Pi Source Code Repository
- RAK2287 + Raspberry Pi ready to flash Firmware
- RAK2287 3D Model
- Quick Start Guide for Raspberry Pi and RAK LPWAN Concentrators
Return Policy:Ā Due to the high demand for this product, all salesĀ for this product are final and we donāt accept returns or cancelations, and we are not able to issue a refund, unless the item is faulty or different from advertisement.
