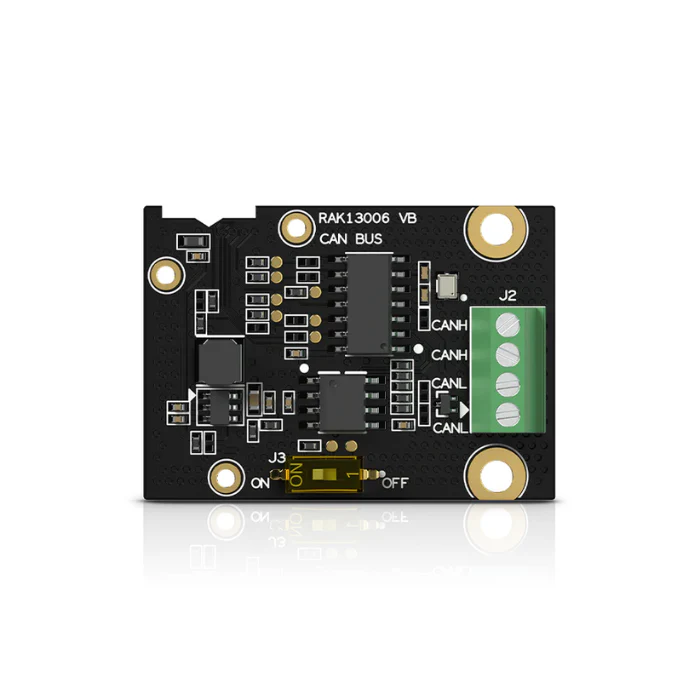

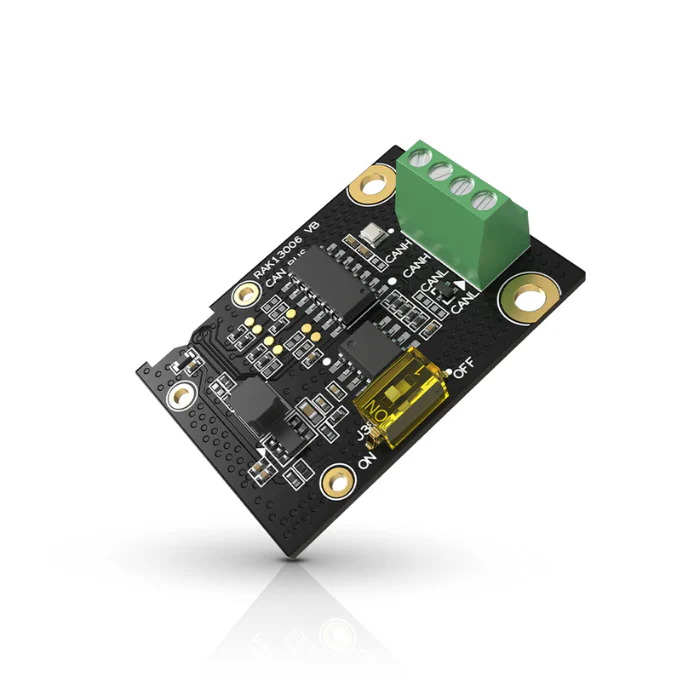

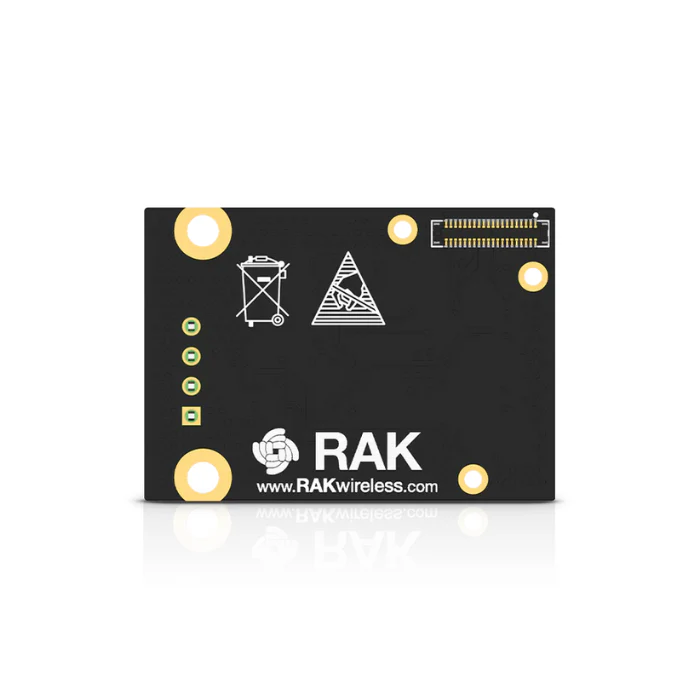

RAK13006 CAN Bus Interface Microchip MCP2518FD PID: 100099
The RAK13006 is a CAN Bus interface using the Microchip MCP2518FD CAN controller. It is used in cars, trucks, building automation and has a secure data transmission as it uses differential signals. The RAK13006 supports high speed CAN up to 1 Mbit/s.
Features
- Based on MCP2518FD and ATA6563
- Arbitration Bit Rate up to 1 Mbps
- Supports both ISO 11898-2 and ISO11898-3 modes
- Power Supply:3.3 V
- SPI bus communication
- Operating Temperature: -40Ā° C ~ 85Ā° C
- Size 25 x 35 x 1 mm
Documentation
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- RAK13006 3D Model(opens new window)
- 40-Pin Male Connector 3D File
- WisBlock Interface Tutorial
Warranty & Support:
ComplimentaryĀ Telephone and Email/Live Chat SupportĀ (Click Here)
OnlineĀ Technical Manuals and InstructionsĀ (Click Here)
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
Return Policy: Due to the high demand for this product, all salesĀ for this product are final and we donāt accept returns or cancelations, and we are not able to issue a refund.Ā
