RAK13001 Wisblock relay module for the WisGate Connect PID 100038
Product Description

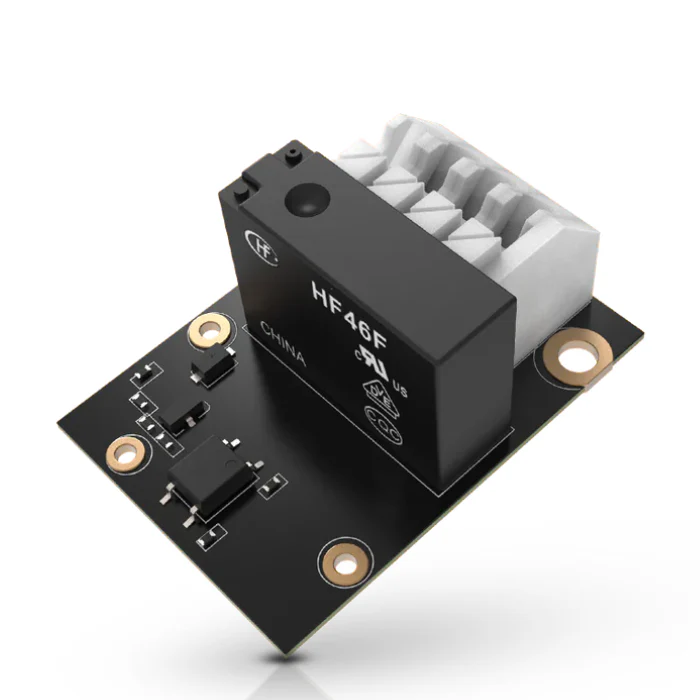

RAK13001 is a WisBlock relay module with one isolated input and one isolated output based on the HONGFA HF46F relay.Ā It is used to control higher voltage signals and peripherals safely from WisBlock.
Product Features
- One relay isolated output
- One opto-couple isolated input
- The isolation between internal and external is up to 3750 VDC
- The output of the relay supports a 30VDC/2A rating
- The input of opto-couple supports 12-24V
- Module size: 25X35mm
Documentation
- RAK13001 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository (opensĀ new window)
- RAK13001 3D Model (opensĀ new window)
- 40-Pin Male Connector 3D File (opens new window)
- WisBlock Sensor Tutorial
