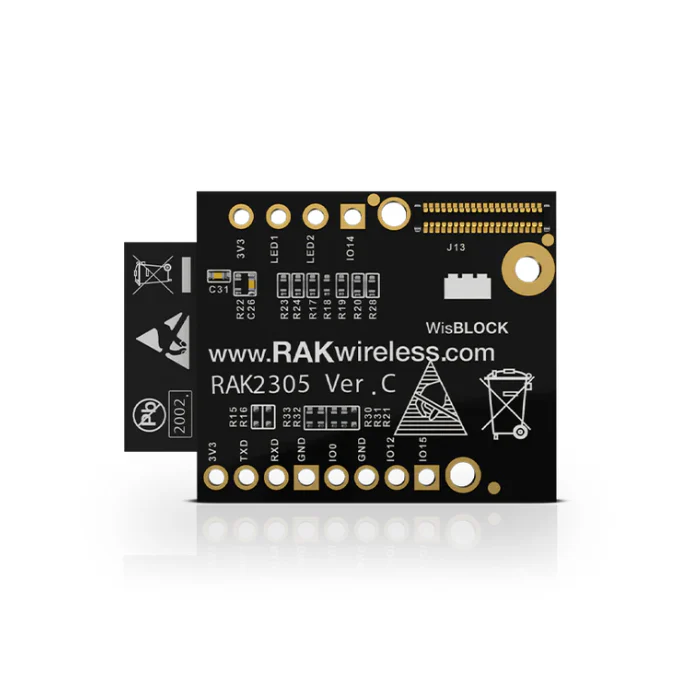

RAK RAK2305 WiFi Espressif ESP32 WisBlock Communication module PID 110000
***This module is NOT currently compatible with Meshtastic Firmware.***

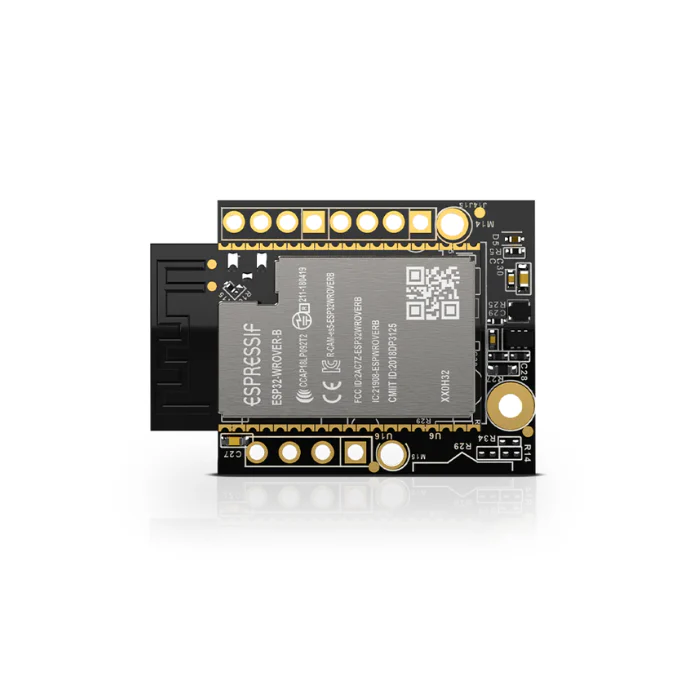

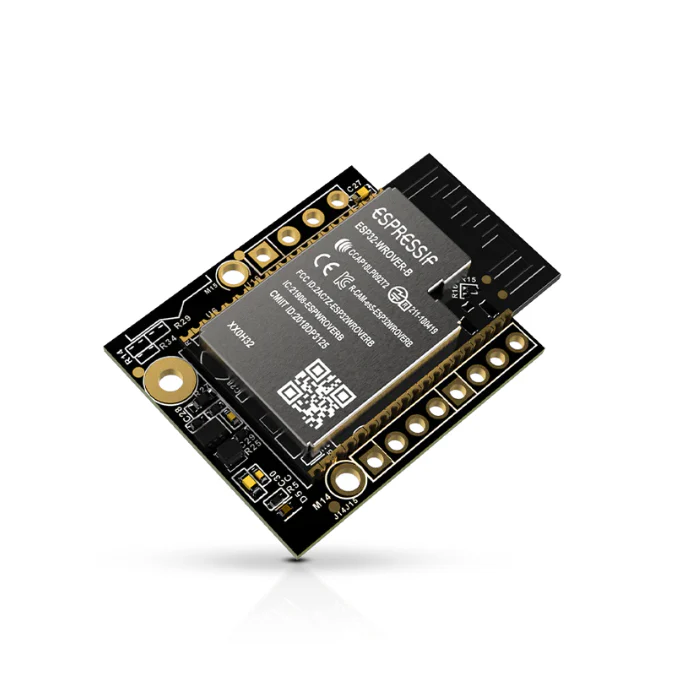

RAK2305 is based on Espressif ESP32-WROVER 2.4Ghz Wi-Fi and Bluetooth module. It is part of the WisBlock Wireless modules and requires a WisBlock Core to work.
RAK2305 can operate in 2.4GHz WiFi and Bluetooth networks.
RAK2305 combined with the RAK4631 WisBlock Core gives your solution additional wireless communication options. It can be used for example as a gateway between your LoRaĀ® nodes and IoT over WiFi.
RAK2305 has in addition the option to be flashed with your custom firmware.
RAK2305 can be comfortably programmed with the Espressif AT command interface.
Key Features
- 2.4GHz Wi-Fi and Bluetooth module
- Based on Espressif ESP32 Wrover B
- PCB antenna
- Espressif AT command interface
- Option to flash custom firmware
- Wi-Fi connection to AP
- Wi-Fi AP mode.
- Bluetooth Master and Slave mode
- UART communication with WisBlock Core module
Package Inclusion
- 1pc RAK2305
Documentation
- RAK2305 Quick Start Guide
- Datasheet
- Low Level Development
- WisBlock Quick Start Guide
- WisBlock Source Code Repository(opens new window)
- RAK2305 3D Model(opens new window)
- 40-Pin Male Connector 3D File(opens new window)
- WisBlock IO Tutorial
Examples
- Sample Code: RAK4630 AT Command Test(opens new window)
- Sample Code: RAK11300 AT Command Test(opens new window)
- Sample Code : RAK4630 Connect to Access Point(opens new window)
- Sample Code : RAK11300 Connect to Access Point
