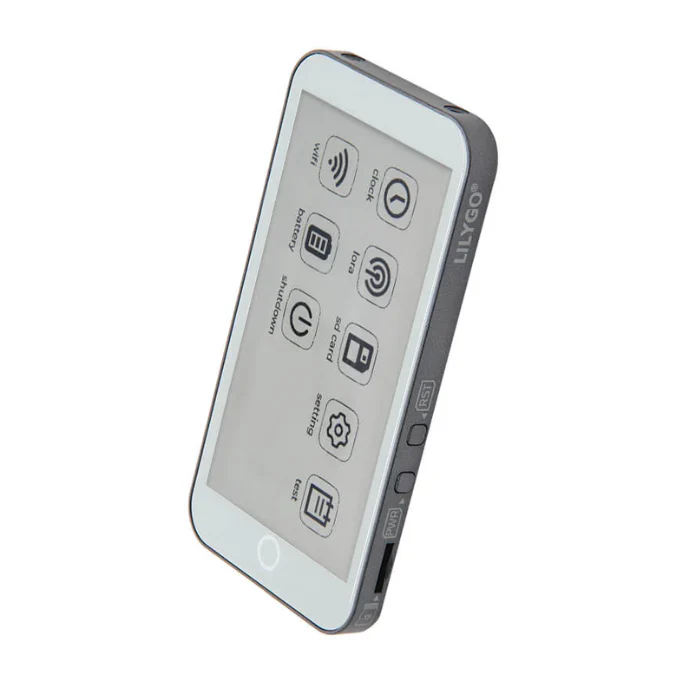

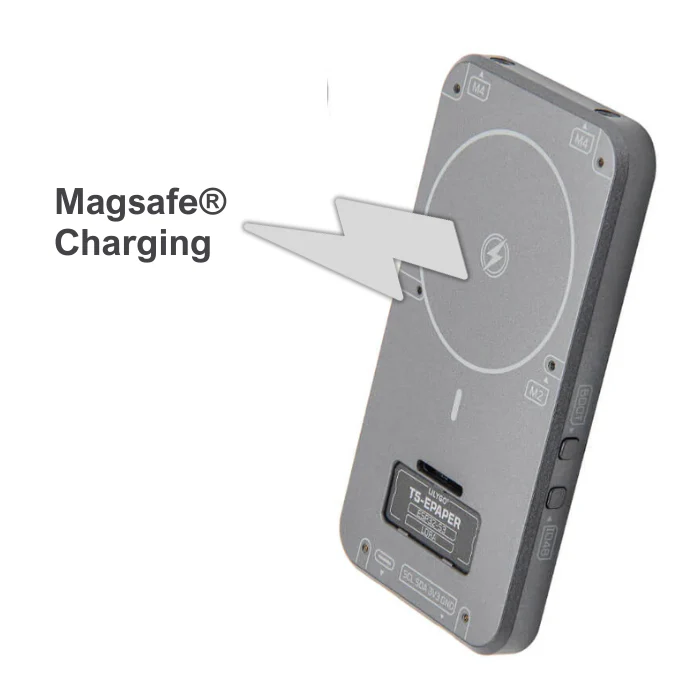

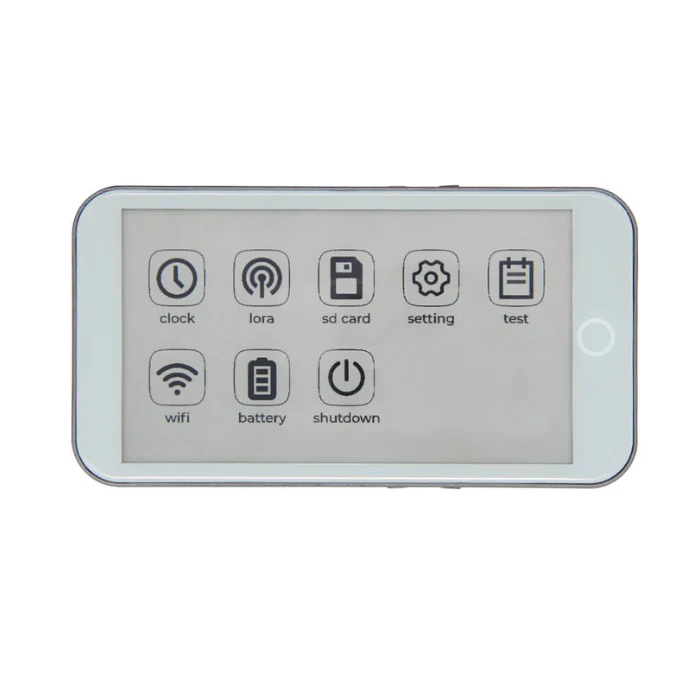

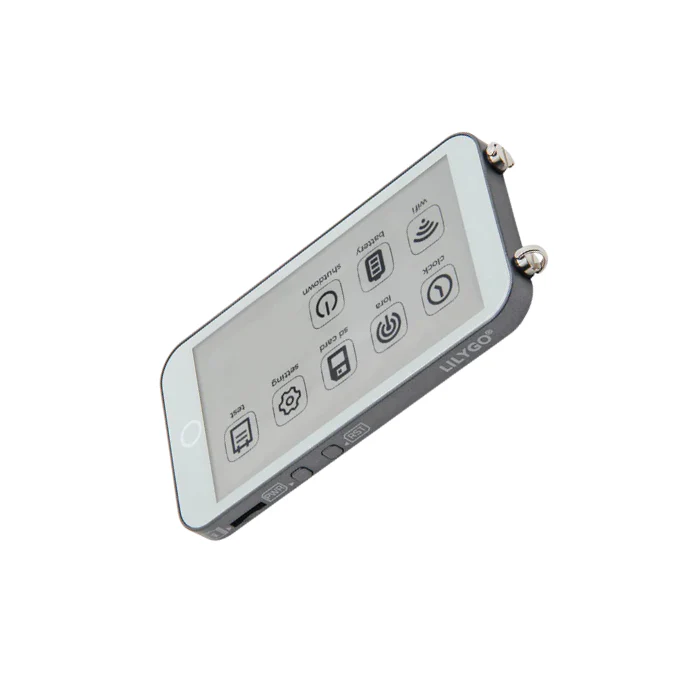

LILYGO® T5 E-Paper S3 Pro 4.7 inches ESP32-S3 E-ink handheld magsafe 915 Mhz

Product image 1
Product image 2
Product image 3
Product image 4

LILYGO® T5 E-Paper S3 Pro 4.7 inches ESP32-S3 E-ink handheld magsafe 915 Mhz

LILYGO® T5 E-Paper S3 Pro 4.7 inches ESP32-S3 E-ink handheld magsafe 915 Mhz

Why is pricing higher than LILYGO site? For USA there are 27.5% import tariffs that are already included in the price. This item also ships free within the USA.

Specifications

MCU ESP32-S3-WROOM-1
Flash 16MB
PSRAM 8MB
Wireless Connectivity 2.4 GHz Wi-Fi& BLE 5
Programming Environment Arduino-IDE, VS Code
Onboard function Touch, RTC PCF8563, tf Card
Battery Management Chip  BQ25896, BQ27220


SX1262 Low Power LoRa Transceiver

Support Baud  433Mhz, 868Mhz, 915Mhz


4.7-inch Ultra-low Power E-paper

Driver IC  ED047TC1
Size 4.7 inch
Gray levels 16



Support and Documentation

Dev board return policy

Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
