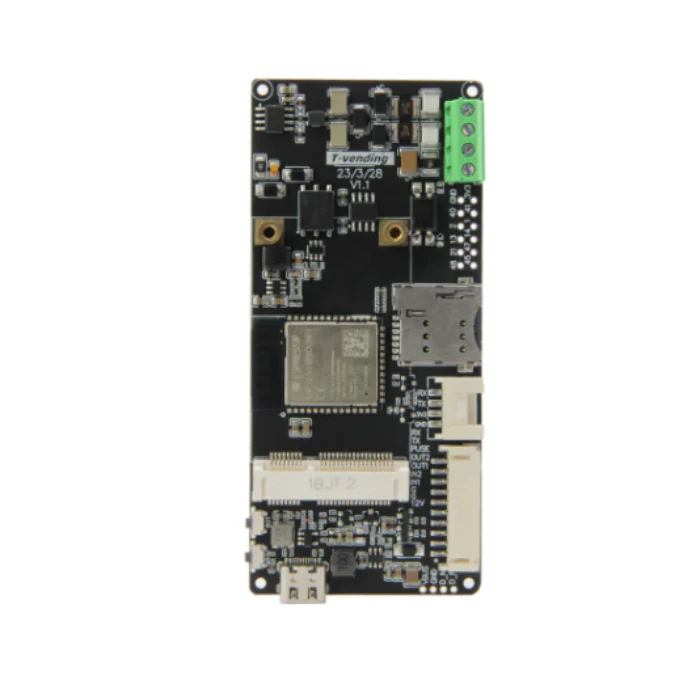

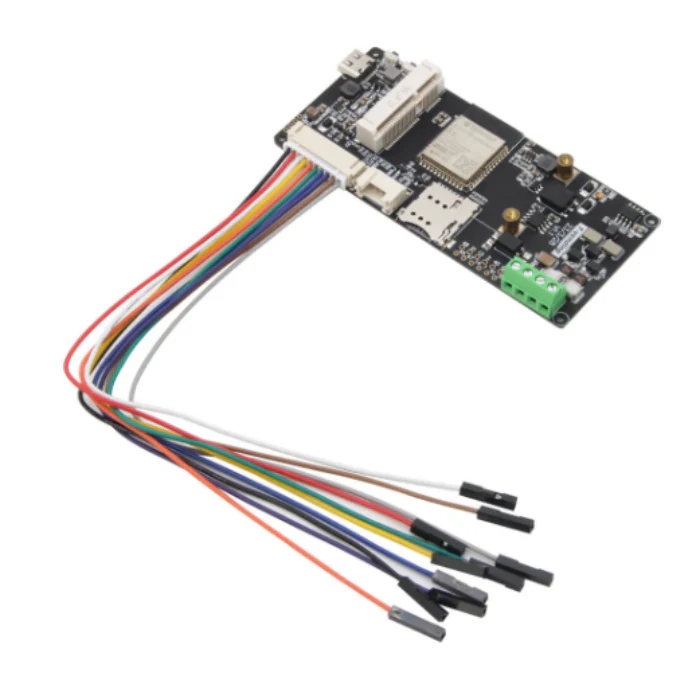

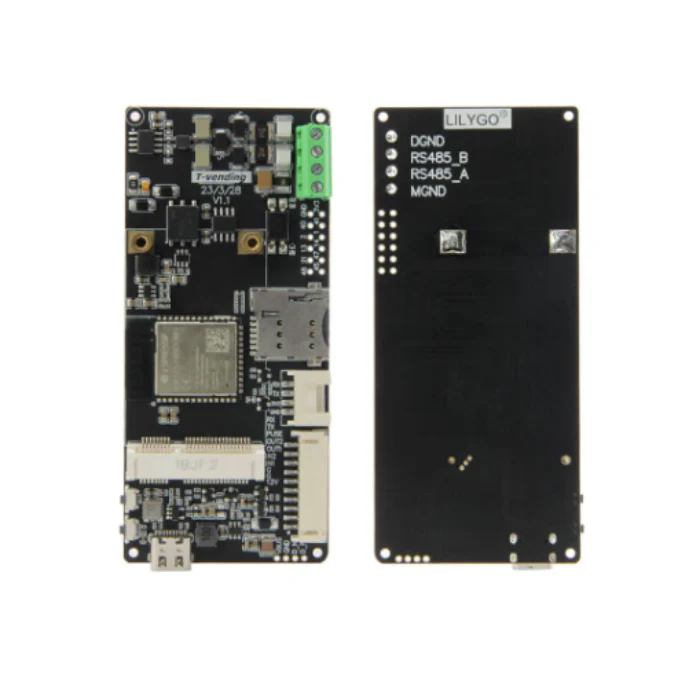

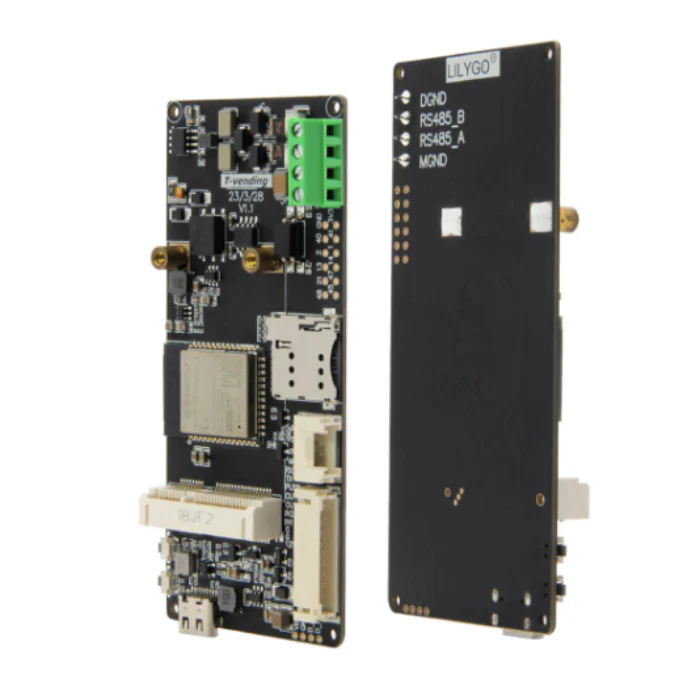

LILYGO T-Vending H625 (Support 802.11 b/g/n Wi-Fi and Bluetooth 5 LE)
Support 802.11 b/g/n Wi-Fi and Bluetooth 5
Specifications
|
MCU |
ESP32-S3-WROOM-1 dual-core XTensa LX7 MCU |
|---|---|
|
Programming platform |
Arduino-IDE, VS Code |
|
Onboard functions |
Reset Button + Boot Button Support T-PCIE SIM function Module, Grove Seat |
|
Full-duplex high-speed RS485 module |
|
Ā Ā Module Name |
RSM485MT5V |
|
Ā Ā Port |
TTL/RS485 |
|
Ā Ā Isolation voltage |
3000V |
|
Ā Ā Isolation output |
5V/50mA 0.25W |
|
Ā Ā Communication rate |
1200~128000bps |
Ā
Pin Diagram
If you need technical support please check the github link below for more details.
