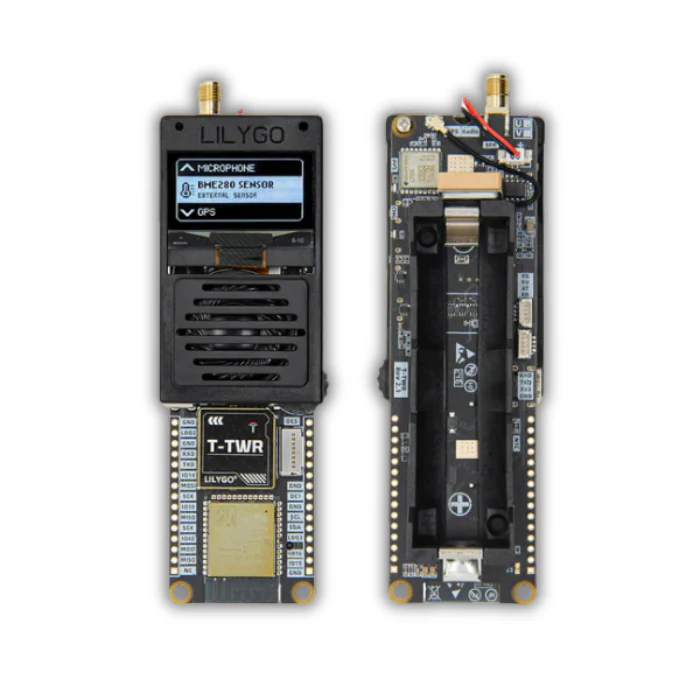

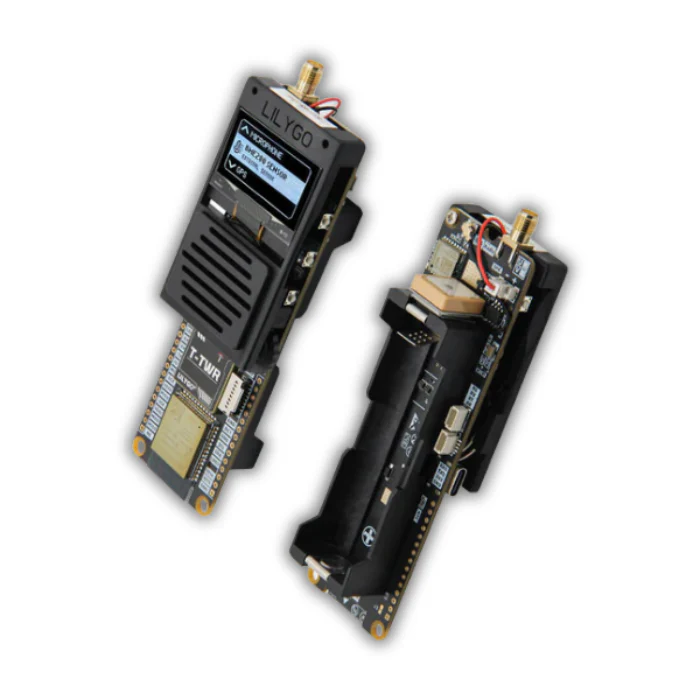

LILYGO T-TWR REV2.1 Development Board Walkie-Talkie Module H710 (VHF 134-174MHz)
***This product does not include the battery.***
Check our battery page.
Specifications
| MCU | ESP32-S3-WR0OM-1-N16R8 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless protocol | Wi-Fi & Bluetooth 5 (LE) |
| Onboard functions |
4 Buttons (PPT+Boot + PWR + Reset) PMU AXP2102, TF Card function, WS2812 RGB LED |
| Supply Mode | USB / 21700 battery / 18650 battery + spring |
L76K GNSS Module
| Support |
GPS, BDS, GLONASS, Built-in LNA, SAW Filter, AGNSS and 1PPS |
1.3 inch SH1106 OLED
| Resolution | 128x 64 |
| I2C Interface | SDA--IO08 SCL--IO09 |
| Display Color | 2 |
Sample Code For Reference [Github]
If you need technical support please check the below link to find more details
Other Support
Size For Reference
Pin Diagram
More
Dev board return policy
Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
