LILYGO® T-Lora Pager US 915 Mhz LoRa + ESP32-S3 Handheld AIOT Programmable Development Device K257-01
Why is pricing higher than LILYGO site? For USA there are 27.5% import tariffs that are already included in the price. This item also ships free within the USA. The price you see on our site is your total price, with sales tax collected in some states.
T-Lora Pager is the new member of the LILYGO T series, the compact exterior and foldable external antenna design, fully utilize the wireless performance while keeping the device aesthetically pleasing.
UI Demo
- Built-in UI demo designed by LILYGO supports smooth interaction through encoder.
- Based on the demo, you can learn to develop programs for different application. scenarios.
UI Notes
LILYGO T-LoRa Pager is not currently supported in Meshtastic but is supported in ChatterBox.
Core Functions Overview
- QWERTY keyboard
- AI support IMU (BHI260AP)
- 2.33-inch long screen (222 x 480 resolution)
- U-blox GPS module (MIA-M10Q)
- RFID/NFC + RTC circuitry
- TI Power Management Monitoring Chipset
- ES8311 (microphone/speaker/headphone jack)
- Encoder + Keypad
Specifications
| MCU | ESP32-S3 |
| Flash | 16MB |
| PSRAM | 8MB |
| Development | Arduino-IDE,VS Code,ESP-IDF |
| Board Function | RTC, Battery Charger, Battery Gauge, GPl0 Expand, Audio Power Amplifier, TF Card, Keyboard |

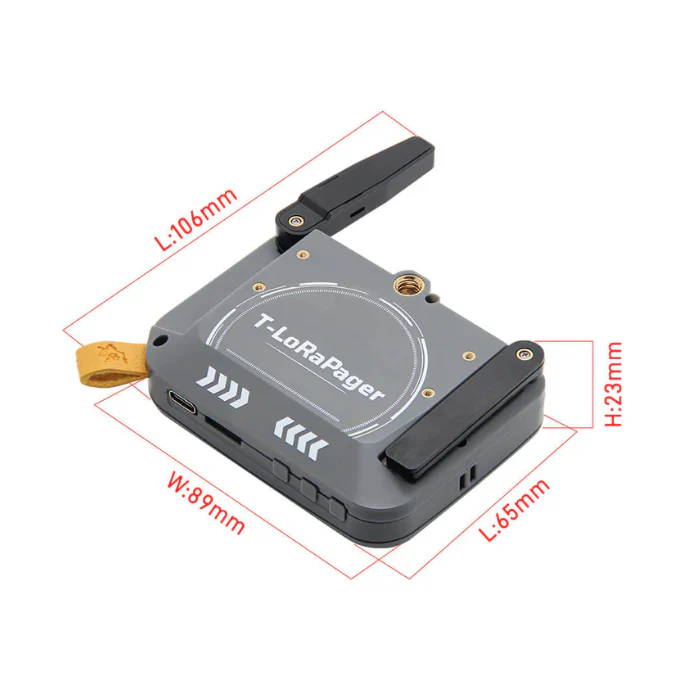

| Size | 106 x 89x 23mm |
| USB Charging | 5V, 500MAH |
Dev board return policy
Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.
Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
