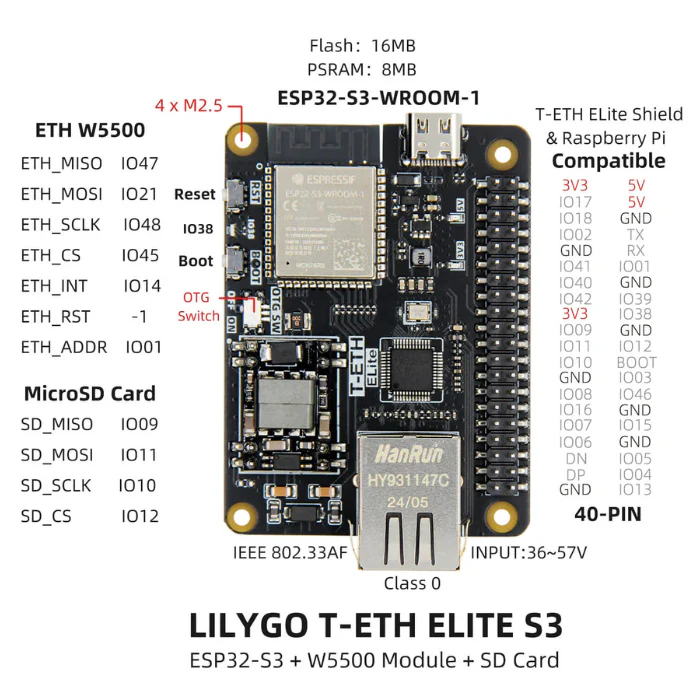

LILYGO T-ETH ELite ESP32-S3 Ethernet PoE H744
It can be used asĀ LoraWan gateway mode, and theĀ Lora+GPS expansion boardĀ can beĀ realizedĀ by stacking theĀ Lora Mesh mode.
ESP32-S3+Ethernet POE as the mainboard
Specifications
| MCU | Ā ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
| Development | Arduino, PlatformlO-IDE, ESP-IDF |
| Flash | 16MB |
| PSRAM | 8MB |
| Size | 50 X 67mm |
| USB Charging | 5V 500mA |
W5500 Ethernet Module
| Supports Protocols | Ā TCP, UDP, ICMP, IPv4, ARP, PPPoE |
Ā
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
