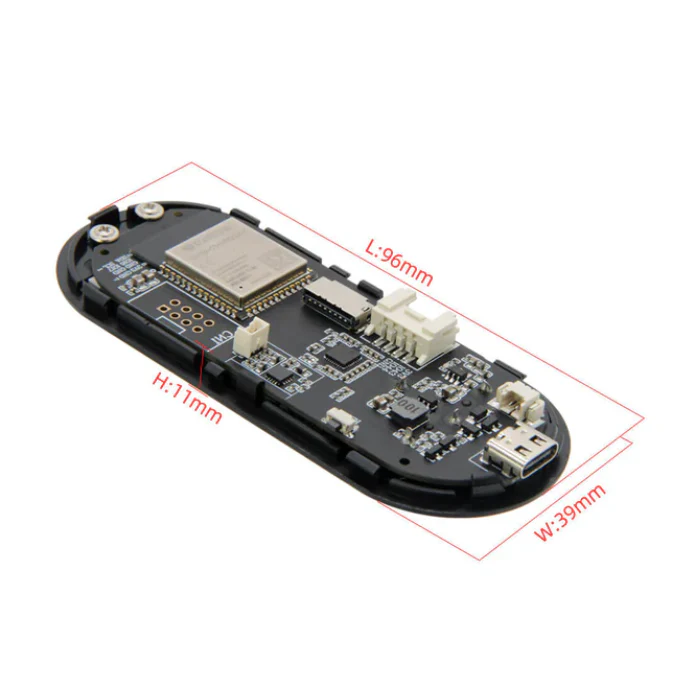

T-Embed is an IoT embedded panel designed for programmable development. ABS+PC material (optional translucent version) panel + circuit board integrated standardized design, providing product 3D drawings and reference design drawings. Easy design to embed on your product.

Specifications

MCU	ESP32-S3
Material	ABS
Wireless	Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth mesh

1.9-inch IPS color TFT LCD

Model	ST7789
Brightness	350(TYP)Cd/m2
Resolution	170(H)RGBx 320(V)

Rotary encoder + confirmation key in one

Microphone	X 2
NUMBERS OF DETENT	24
PULSE/ROTATION	12 PULSE/360°
Speaker	8 ohm @ 1W
Ring RGB light	x 7
GROVER	x 1

2.54 x 8pin GPIO interface

TF card holder

Type-C USB

Battery charge and discharge protection [email protected] battery interface

Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-Embed

T-Embed Shell
