Price may be higher than the LILYGO website because stock is located in the USA and tariffs are already included in price.

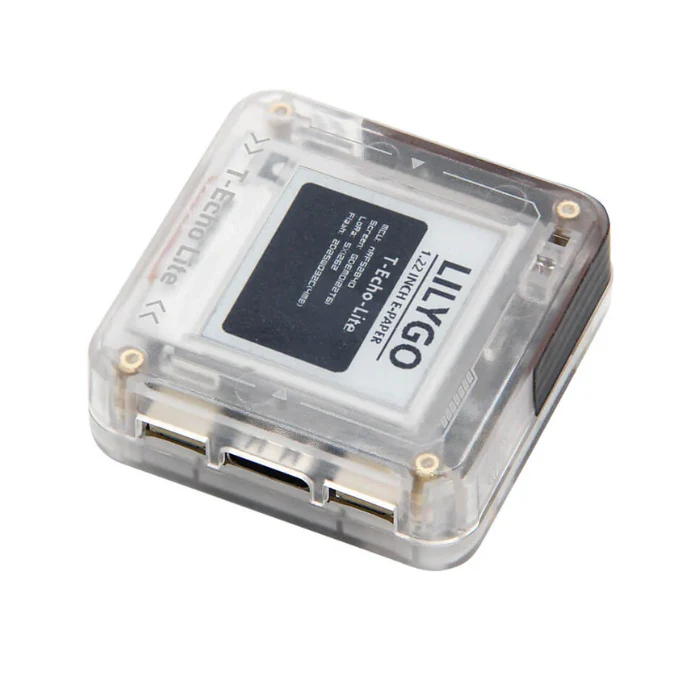

T-Echo Lite is a Lite version of T-Echo, the Lora+NRF52840+e-paper lower power device.

Specifications

MC	NRF52840
Flash	1MB
RAM	256kB
Programming Platform	Arduino-IDE, VS Code
Wireless Connectivity	Bluetooth 5, Thread, ANT, Bluetooth Mesh,802.15.4, Zigbee, 2.4 GHz proprietary
Battery Measurement Control	IO 0.31; ADC: IO 0.2

Grey level	2
Resolution	200x200
Full refresh time	2S

Tech Support

ℹ️Product information Check out our GitHub repository for sample code and more detailed information about this board. 💻Technical support Visit our GitHub community and post a description of the problem, and our engineers will help you directly.

Dev board return policy

This item falls under our Dev Board return policy. Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
