Our LILYGO products ship from our US/Florida location and already include tariffs, so no extra charges.

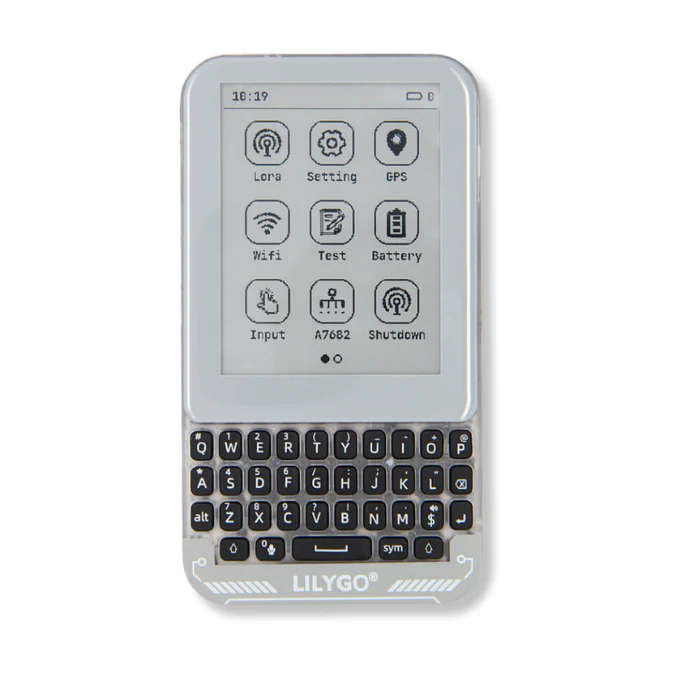

T-Deck Pro Highlights at a Glance

    ✅4G module
    ✅Bosch BHI260AP Self-Learning AI Smart Sensor with Integrated IMU
    ✅3.1-inch e-paper touch screen
    ✅PMU chip
    ✅3.5 headphone jack
    ✅Extended Qwiic function module interface

This is version A7682E (4G). The main difference between the PCM5102A and the A7682E 4G is the voice function: The audio of the A7682E 4G version can only be driven based on the A7682, while the PCM5102 version can be driven directly through the ESP32-S3.

Specifications

MCU	ESP32-53FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity	2.4 GHz Wi-Fi, Bluetooth 5 (LE)
Development	Arduino, Platform0-IDE, ESP-IDF
Option	A7682E/ PCM5102A
Flash	16MB
PSRAM	8MB
Onboard functions	GPS, TF Card, Microphone, Speaker
Lora Chip	SX1262
Battery (Built-in)	1400 mah

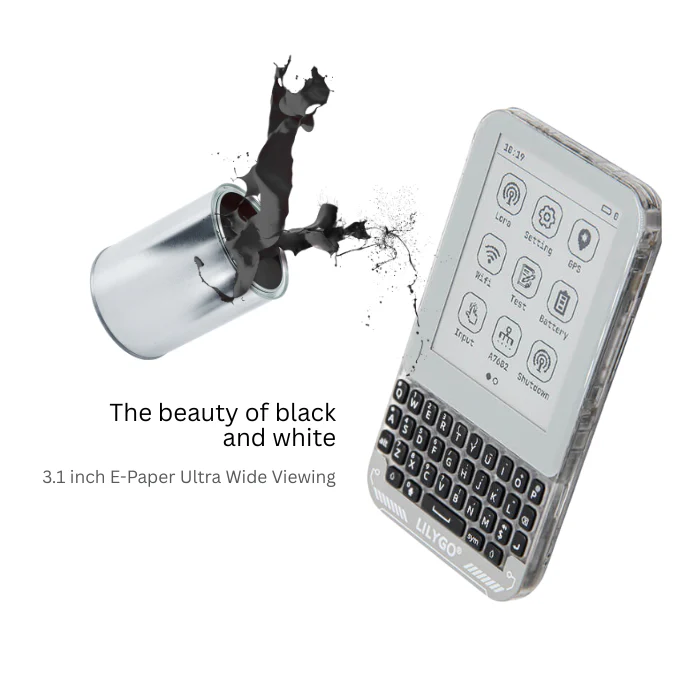

3.1 inch E-Paper Ultra Wide Viewing Low Power

Resolution	320x240
Drive Chip	GDEQ031T10

Tech Support

ℹ️Product information Check out LILYGO GitHub repository for sample code and more detailed information about this board. 🧑💻Technical support Visit our GitHub community and post a description of the problem, and LILYGO engineers will help you directly.
