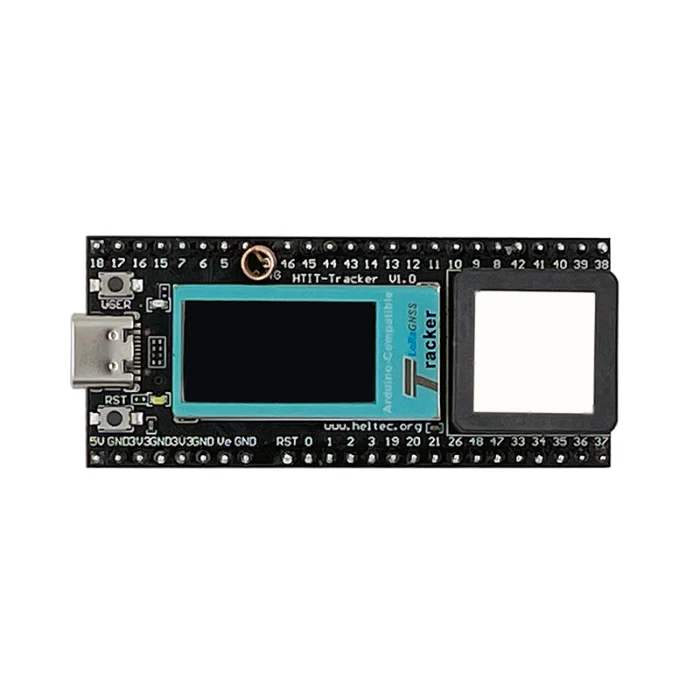

Heltec Wireless Tracker (V1.1) Wi-Fi LoRa BT GNSS 863-928 Mhz
Summary
Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastic.
Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.
Main Features
- 863-928 Mhz range

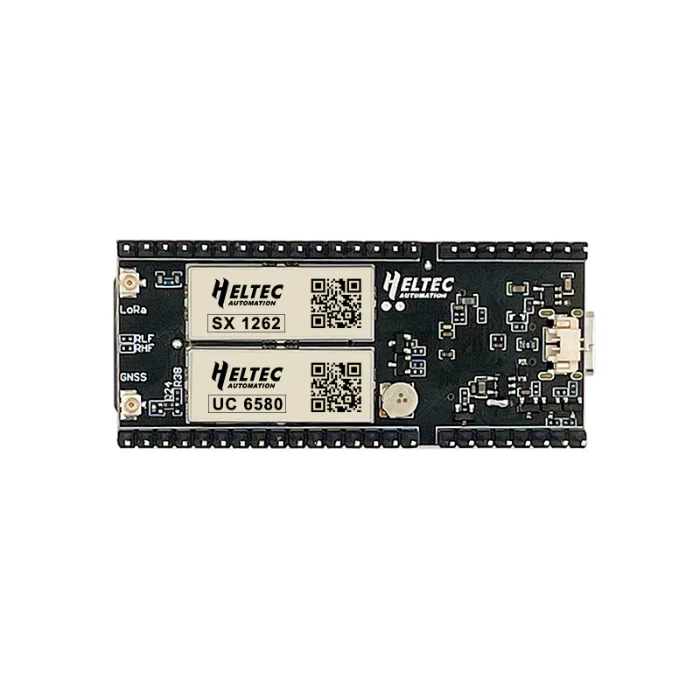

- ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.
- Low power design of dual-frequency multi-system based on 22nm technology.
- Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.
- Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.
-
Support the Arduino development environment.
Specifications
| Parameters | Description |
|---|---|
| Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
| LoRa Chipset | SX1262 |
| GNSS Chipset | UC6580 |
| Frequency | 863~928MHz |
| Max. TX Power | 21±1dBm |
| Max. Receiving Sensitivity | -134dBm |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin |
| Battery | 3.7V lithium battery power supply and charging |
| Operating Temperature | -20 ~ 70 ℃ |
| Dimensions | 65.48 * 28.06* 13.52mm |
Pin Map
Product Inclusion
- x1 - Heltec Wireless Tracker(V1.1) Pre-flashed with Meshtastic
- x1 - SMA Male Glue Rod Antenna
- x1 - IPEX to SMA Female Pigtail
- x1 - SH1.25×2 Battery Connector
- x4 - Pin Headers
Documentation & Resources
- [Resource] — Heltec ESP(ESP32&ESP8266) framework
- [Resource] — Hardware Update Logs
- [Resource] — Heltec LoRaWAN test server based on TTS V3
- [Resource] — User manual document
- [Attachment] — Downloadable resources
