Heltec Wireless Stick Lite(V3) 902-928 Mhz
HTIT-WSL is a development board for Wi-Fi, Bluetooth and LoRa. Because some customers do not need OLED screen when using WiFi Lora32, Heltec launched this product.
The HTIT-WSL is composed of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262), which perfectly support Arduino®. Users can easily carry out secondary development and application. This supports Arduino® and can run the LoRaWAN protocol stably.
Main Features
- LoRa band 902-928 Mhz
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa
- Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
- Support the Arduino development environment;
- With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications;
Specifications
| Parameters | Description |
|---|---|
| Master Chip | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor) |
| LoRa Chipset | SX1262 |
| USB to Serial Chip | CP2102 |
| Frequency | 863~928MHz |
| Max. TX Power | 21d B ± 1d B |
| Max. Receiving sensitivity | -134dBm |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Bluetooth LE | Bluetooth 5, Bluetooth mesh |
| Hardware Resource | 7*ADC1 + 9*ADC2; 8*Touch; 3*UART; 2*I2C; 2*SPI; etc. |
| Memory | 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash |
| Operating temperature | -20 ~ 70 ℃ |
| Dimensions | 58.08 * 22.6* 8.2 mm |
| Interface | Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2.4G ANT(IPEX1.0); 2*20*2.54 Header Pin |

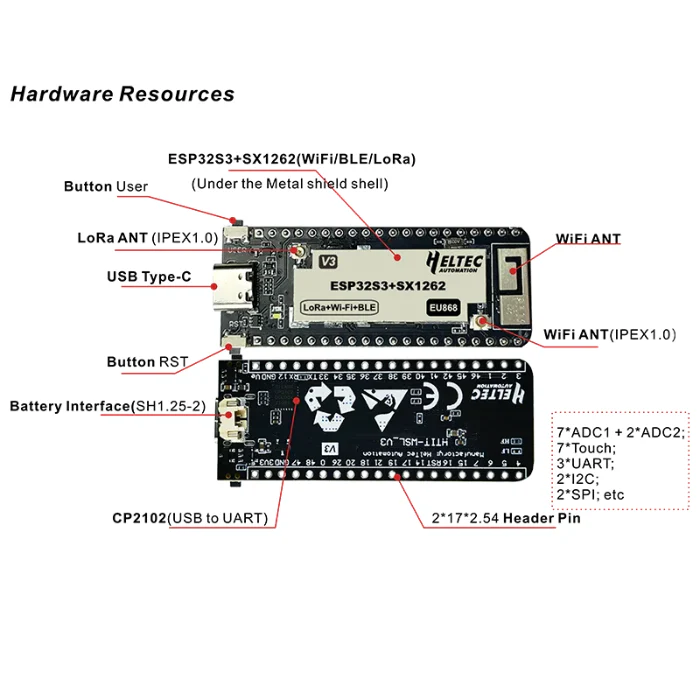

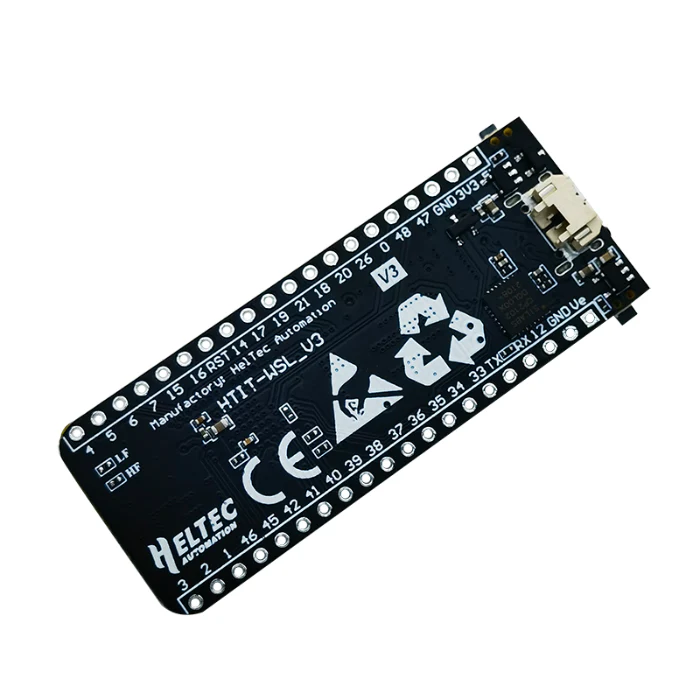

Pin Map
Product Inclusion
- x1 - Heltec Wireless Stick Lite(V3) Pre-flashed with Meshtastic
- x1 - LoRa Antenna
- x1 - SH1.25×2 Battery Connector
- x2 - Pin Headers
Compared to Wireless Stick Lite (V2), V3 has made the following upgrades:
| Item | Wireless Stick Lite (V2) | Wireless Stick Lite (V3) |
|---|---|---|
| MCU | ESP32-D0 | ESP32-S3 |
| LoRa Node Chip | SX1276 | SX1262 |
| USB Socket | Micro USB | USB Type C |
| Crystal Oscillator | Ordinary crystal oscillator | High precision temperature compensated crystal oscillator |
| Low Power Features in Deep Sleep | 30uA | <10uA |
| Other Update | Better impedance matching of RF circuits. |
Documentation & Resources
- [Resource] — Heltec ESP(ESP32&ESP8266) framework
- [Resource] — Hardware Update Logs
- [Attachment] — Pin Map
- [Resource] — Downloadable Resources
