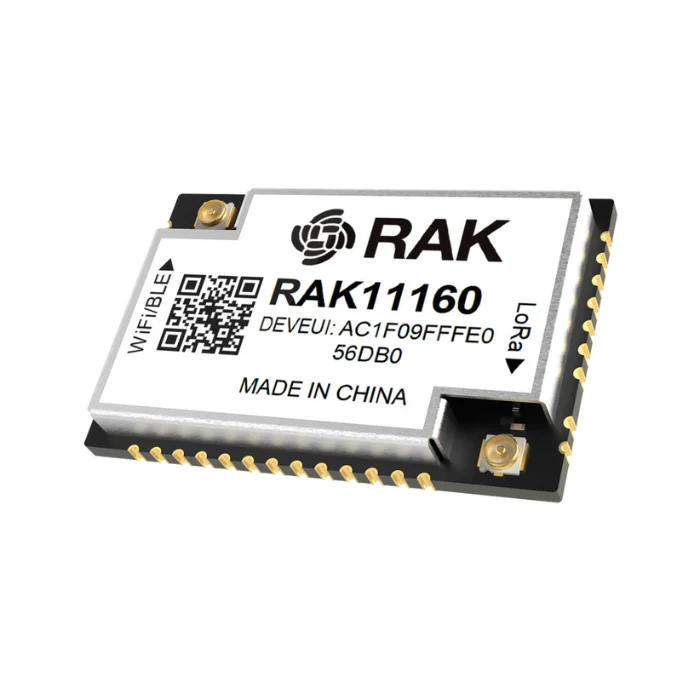

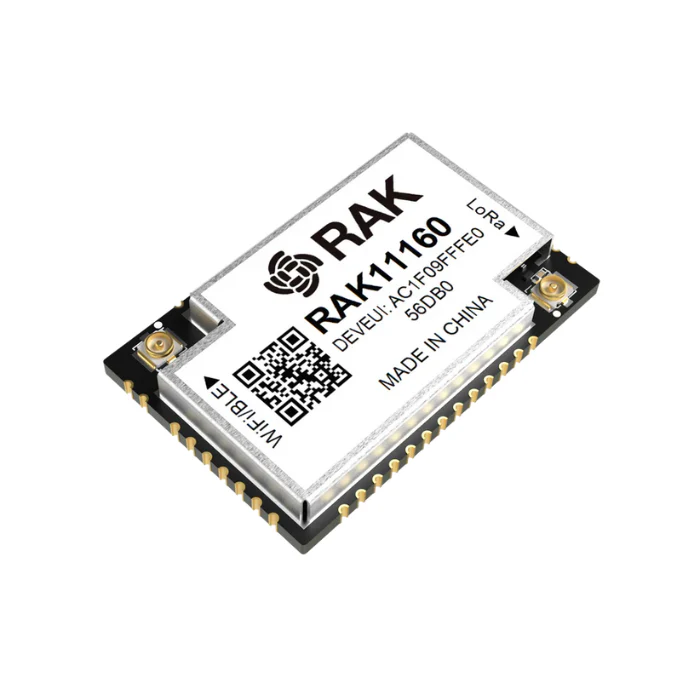

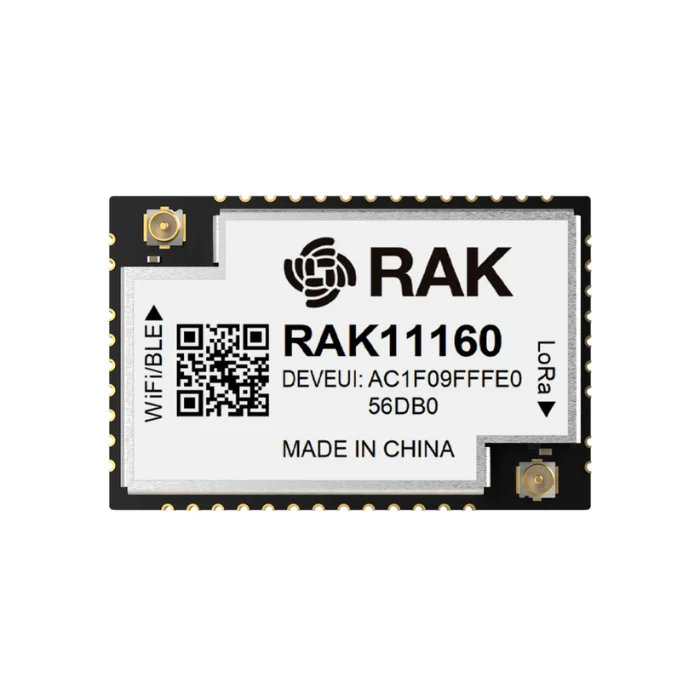

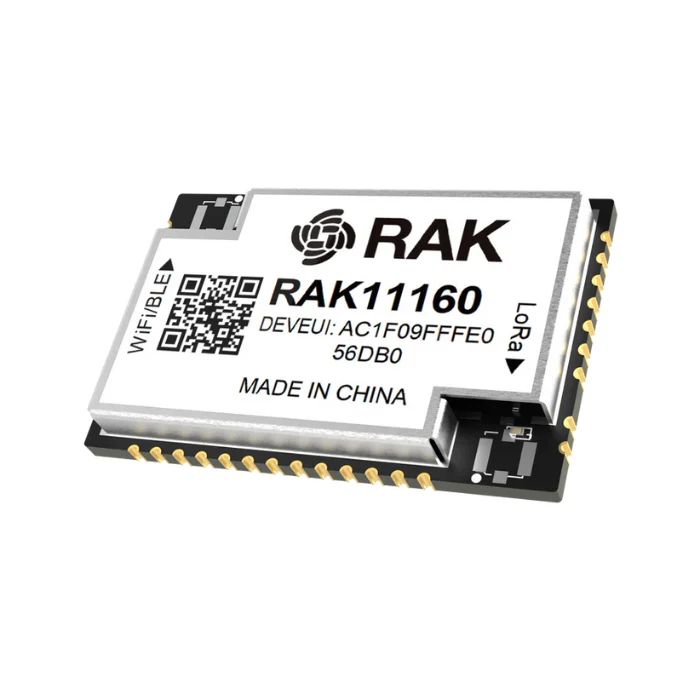

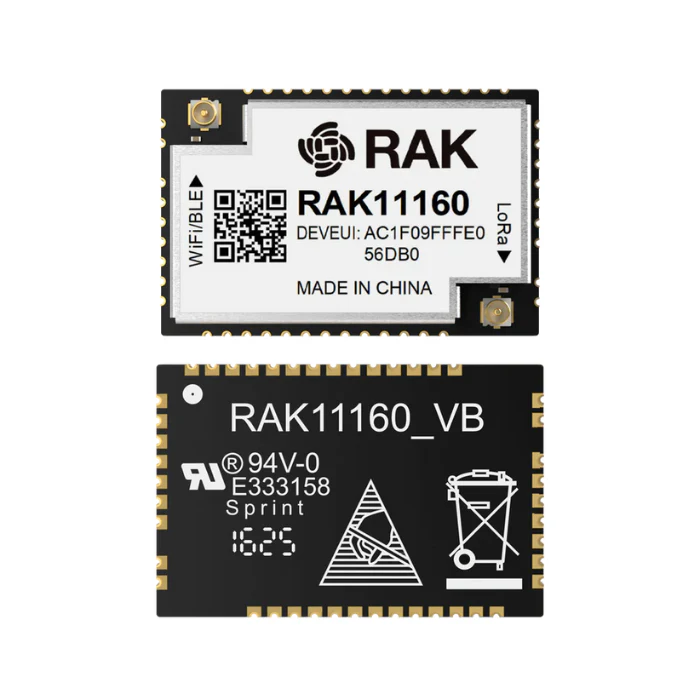

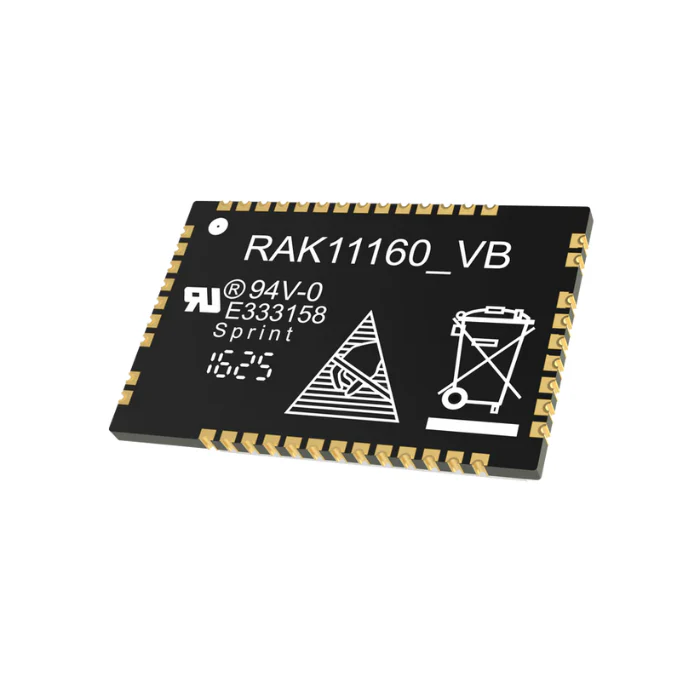

RAK11160 is a dual-core, low-power module for LoRaWAN that combines the STM32WLE5 LoRa controller with an ESP32-C2 chip for WiFi and BLE connectivity. This unique architecture is designed for IoT applications requiring long-range wireless communication and occasional high-bandwidth tasks like MQTT forwarding or OTA updates.

The RAK11160 supports two development modes:

1. Standalone: Program STM32WL using RAK’s RUI3 SDK for sensor reading and LoRaWAN operation.
2. Dual-mode: Use STM32WL module for LoRaWAN, and wake ESP32 when WiFi/MQTT/BLE functions are needed. Data flow and logic can be managed with custom firmware.


For better frequency stability over the temperature range, the STM32WLE is using a TCXO for the clock generation.

Why You Need RAK11160 ESP32 + STM32WL Module

Build smarter, longer-lasting IoT devices with the RAK11160. Thanks to its ultra-low power control and dual wireless technologies, it's perfect for applications like battery-powered sensors, remote data logging, and asset tracking where energy efficiency and flexibility are critical.

Why it's useful:

• Save battery life – ESP32 fully powers down when not needed
• Connect anywhere easily – LoRaWAN, WiFi, BLE, and P2P all in one module
• Store data safely – Built-in memory ensures no loss during offline periods
• Simplify your IoT design – Compact size fits into almost any project

Key Features of RAK11160 ESP32 + STM32WL Module

• Frequency 900MHz for US915/AU915/KR920/AS923
• Dual MCU Architecture: STM32WLE5 (LoRa) + ESP32-C2 (WiFi/BLE)
• STM32WLE5 LoRa transceiver with TCXO for high frequency stability
• ESP32 LoRa Low Power: Deep power-off mode (~1 µA) when inactive
• LoRaWAN 1.0.3 Class A/B/C compliant
• Supports LoRaWAN and LoRa P2P
• MQTT/HTTP capability via ESP32 with cloud forwarding
• BLE/WiFi scanning for location services or setup
• Smart Power Control: STM32 controls ESP32 via EN pin
• Compact Form Factor: 15 mm x 23 mm x 3 mm, Stamp Pad SMT design
• Supply voltage: 3.0 ~ 3.6 V
• Operating temperature: -40 °C to +85 °C
• Frequency range: 150 MHz to 960 MHz
• Flash/RAM: STM32WLE5 (256 KB Flash / 64 KB RAM), ESP32-C2 (2 MB Flash)
• Interface: UART, I2C, SPI, GPIO
• Development with RUI3 SDK for STM32 and ESP-IDF or Arduino for ESP32
• Ideal for: Low-power MQTT sensor nodes, location-aware trackers, OTA-enabled smart devices


What’s in the Box

• 1 pc RAK11160 (900MHz for US915/AU915/KR920/AS923)

How to Get Started with RAK11160 ESP32 + STM32WL Module

• RAK11160 WisDuo LPWAN+BLE+WiFi Module Quick Start Guide
• RAK11160 WisDuo LPWAN+BLE+WiFi Module AT Command Manual
• RAK11160 WisDuo LPWAN+BLE+WiFi Module Datasheet
• RAK11160-MQTT-Gateway Example for a LoRa P2P receiver with forwarding of data packets to a MQTT server
• RAK11160-WiFi Example for WiFi connection with the RAK11160

US 902-928 Mhz frequency
