Official RAKwireless Heavy Duty N-female 3.5" diameter antenna magnet base + 2m CFD-200 cable
Rokland is a Gold Level distributor for RAK Wireless. Please note when comparing to price on RAK web site, RAK price is not inclusive of shipping to USA or 25% import tariffs. When buying from Rokland, items ship from USA so no additional shipping or tariffs apply.

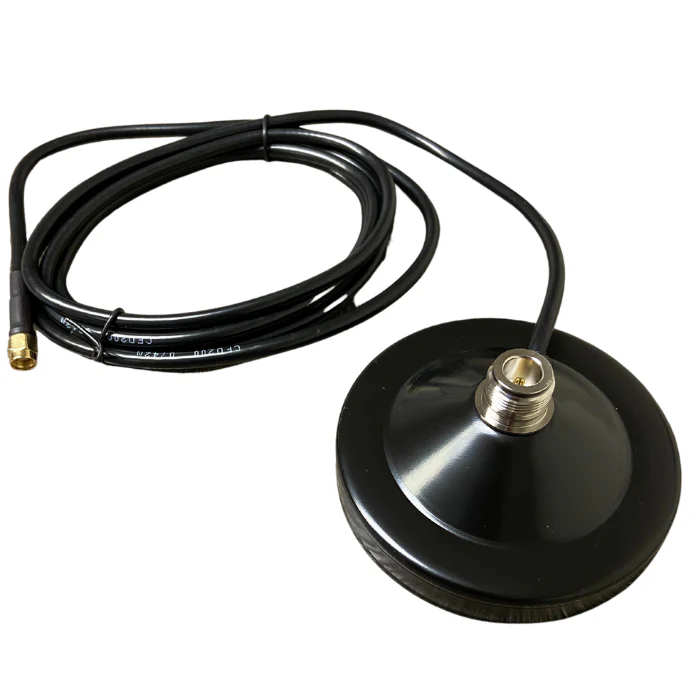

This is the official RAK Wireless magnet antennaĀ base with an N-female connector. It featuresĀ 6.5Ā feet of high-grade CFD-200 RP-SMA male to female extension cable built into the base. This means you can extend yourĀ N-male antenna with very limited loss.
Use with RoklandĀ 4 dBi Fiberglass Outdoor Antenna
Use with RoklandĀ 5.8 dBi N-Male Omni Outdoor Helium 915 MHz Antenna
Use with RoklandĀ 8.5 dBi N-Male Omni Outdoor Helium 915 MHz Antenna
Use with RoklandĀ 10 dBi Backcountry Rural N-Male Omni Outdoor 915 MHz Antenna
Use withĀ ALFA AOA-915-5ACM 5 dBi Omni Indoor/Outdoor 915 MHz Antenna
This is a great option for short-range indoor extension of a compatible antenna for your RAK V2, Bobcat 300, Nebra Indoor/Outdoor, SenseCAP M1, SyncroB.it, Helium Hotspot, Kerlink & LongAP miner. This is not compatible with the factory antenna for these miners, for a compatible base, see here. The base is magnetic so do not put the base right near a computer hard drive.Ā
Cheap entry-level magnet docking bases for antennas typically have cables without shielding, giving you as much asĀ 1.4 dB of gain-loss over the same length cable. Our thick shielded CFD-200 cable limits gain loss to justĀ 0.6 dB for 915 MHz (1.0 dB for 2.4 GHz WiFi), helping you preserve your antenna gain.
We do recommendĀ RokTapeĀ to seal all outdoor connection points.Ā
Specifications :
Part/ModelĀ #:Ā 3.5" Heavy Duty Magnet Base With Cable
Country of Origin:Ā China
ManufacturerĀ :Ā RAK wireless
Frequency: 0~6GHz
Diameter: 3.5 inches
Maximum Input Power: ā„ 2 watts
Impedance: 50 ohms
Cable Type: LMR-200
Connector A: N-Type Female Connector
Connector B: RP-SMA Male Connector
Operation Temperature: -40Ā°C ~ +65Ā°C
Storage Temperature: -40Ā°C ~ +80Ā°C
Cable Length: 2 meters (~6.5 feet)
Heavy Duty/Heavy Weight
Larger antennas will cause weaker magnet bases to fall over. Our heavy-duty magnet gives the total base a weight of 15 ounces, compared to just 3 ounces for an entry-level base.

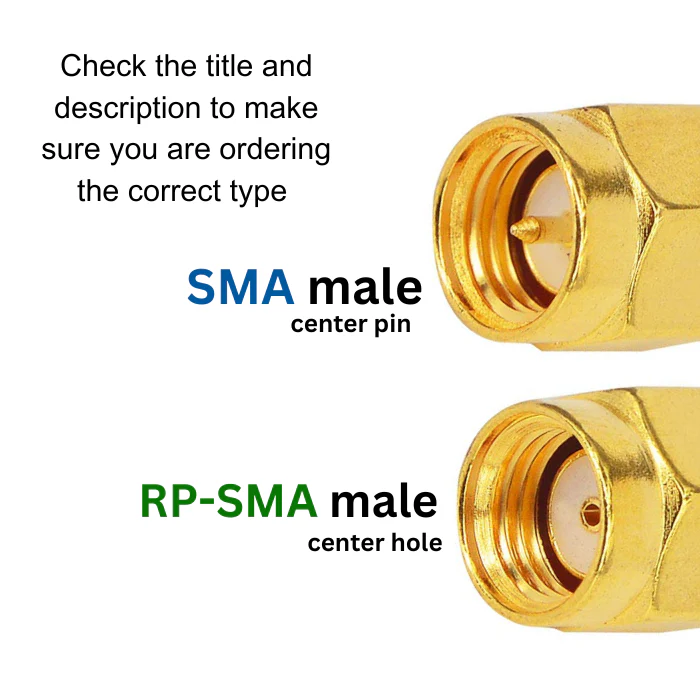

Compatibility: This base has an N-female connector on the top and an RP-SMA male connector at the end of theĀ 6.5-foot cable. RP-SMA is reverse polarity SMA, so the female port has a pin and the male has a hole, as the gender with RP goes by threading. This base is compatible with many popularĀ N-male antennas, including all of the N-male antennas we carry:Ā
Rokland 4 dBi Fiberglass Outdoor Antenna
Rokland 5.8 dBi Outdoor Antenna
RoklandĀ 10 dBi Backcountry Rural Antenna
