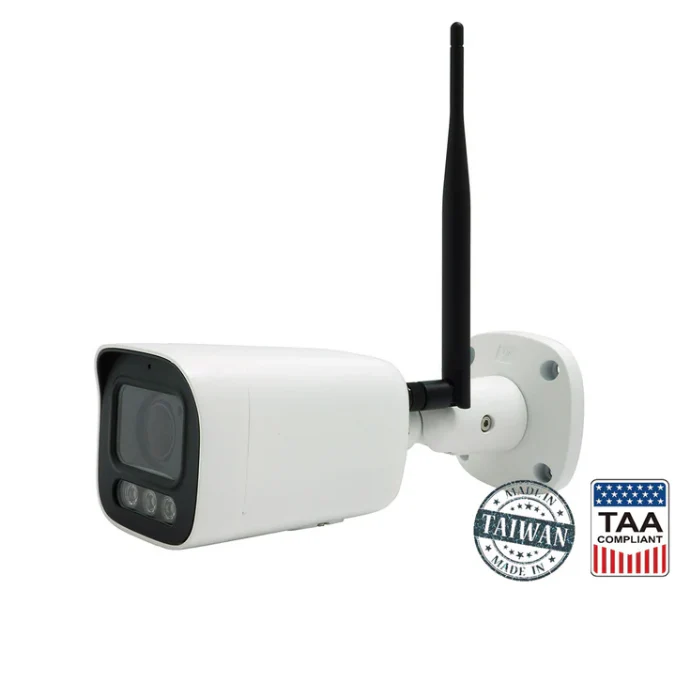

ALFA Network HaLow-Cam WiFi HaLow™ IP Camera US 915 Mhz
HaLow-Cam is world's leading WiFi HaLow™ IP Camera
US 915 Mhz version
HaLow-Cam is a 2 million pixel electric zoom network camera with 1080p full HD resolution images and supports intelligent analysis: tripwire crossing detection, area intrusion detection, and motion detection.
Due to the adoption of the new generation long-distance 802.11ah WiFi HaLow wireless network technology, which solves the pain point of short transmission distance of traditional WiFi 2.4G/5G, HaLow-Cam will become your best partner for security surveillance.

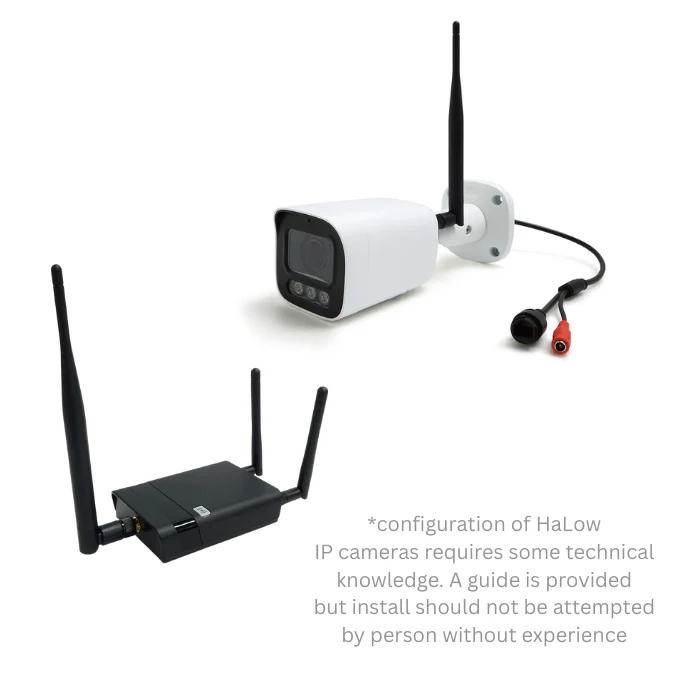

Choose your variant- HaLow R camera requires a HaLow base station or router to communicate. We recommend ALFA HaLow-R. *configuration of HaLow IP cameras requires some technical knowledge. A guide is available but install should not be attempted by person without experience.
Key Features
-
Morse Micro MM6108 WiFi HaLow chipset
-
WiFi HaLow detachable antenna (SMA)
-
2 million pixel 1080p full HD resolution images
-
SONY IMX307 low illumination CMOS sersor
-
Support H.265 image encoding dual streams
-
Intelligent analysis crossing and intrusion event
-
Developed, designed & manufactured in Taiwan
Specifications
|
WiFi HaLow Specifications (IEEE 802.11ah) |
|
|
Chipset |
Morse Micro MM6108 |
|
WiFi standard |
IEEE 802.11ah |
|
Channel bandwidth |
1/2/4/8 MHz |
|
Max. date rate (Phy rate) |
Up to 32.5 Mbps @ Bandwidth 8 MHz |
|
Antenna |
1x External SMA antenna connector |
|
Camera Specifications |
|
|
System processor |
Novatek NT98560 |
|
CMOS sensor |
SONY IMX307 1/2.8" low illumination CMOS |
|
Image illumination |
Color [email protected], black and white [email protected] |
|
Image processing |
H.265, H264, MJPEG image encoding, supports dual streams; supports adjustable code stream 64 Kbps~8192 Kbps; supports adjustable frame rate 1~30 frames/second |
|
Transmission resolution |
Stream 1: 2MP 1920*1080, 1280*720@30 fps Stream 2: 720P(1280*720), VGA(640*480), QVGA(320*240) |
|
Shutter |
1/3 second to 1/200000 second |
|
Lens |
2.7-12 mms |
|
Focal length |
Electric control |
|
Focus mode |
Automatic/semi-automatic/manual |
|
Switch between day and night |
Standard IR-CUT |
|
Noise reduction |
Support 3D noise reduction |
|
Wide dynamic range |
WDR support |
|
Ethernet interface |

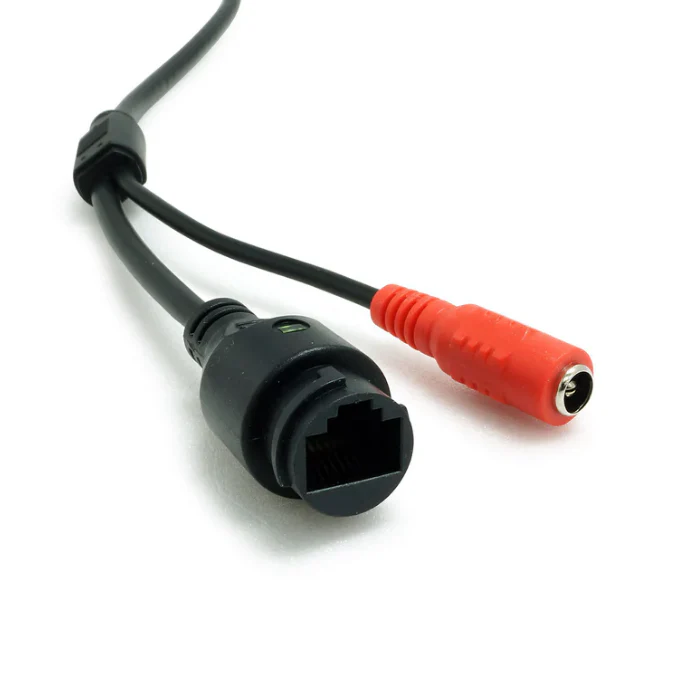

1 RJ45 Ethernet interface, 10/100 M self-adjusting |
|
Communication protocols |
RTSP/DHCP/NTP |
|
Support protocols |
UDP/TCP/HTTP/SSH/RTSP Unicast, Multicast/NTP/ONVIF/Gsoap |
|
Infrared light |
3 high-efficiency IR LEDs |
|
ONVIF |
Support Profile S, Profile T |
|
Compression format |
H.265/HEVC main profile, H.264 main and high profile, Motion JPEG encoding |
|
Camera Specifications |
|
|
Account management |
Support administrator, operator, viewer, etc. to access network cameras at different levels |
|
Private zone |
Off / On (4 zone) |
|
Image quality adjustment |
Sharpness, saturation, contrast, brightness, hue, horizontal flip, vertical flip |
|
Event detection |
Supports motion detection, motion detection has four area settings and adjustable sensitivity. |
|
Smart Event |
Electronic tripwire crossing detection/area intrusion detection |
|
Date & time |
Supports NTP, synchronization with computer or custom time. Also supports time settings in different time zones |
|
Day and night mode |
Equipped with infrared light filter (IR CUT), IR LED (light intensity adjustable), you can choose to switch automatically or manually adjust during the day and night. |
|
White balance |
Automatic, manual, cloudy, night and other scene switching. |
|
Anti-flicker mode |
NTSC(60 Hz), PAL(50 Hz), Exposure settings are adjustable |
|
Intelligent alarm |
Motion Detection |
|
Waterproof level |
Outdoor waterproof type IP 66 rating |
|
Power supply |
Power supply: DC12 V/1 A |
|
Dimensions |
204.3 x 75 x 75 (L x W x H, mm) |
|
Operation temperature and humidity |
Temperature: -20°c~+55°c Humidity: 10%~90% |
Setup Guide
