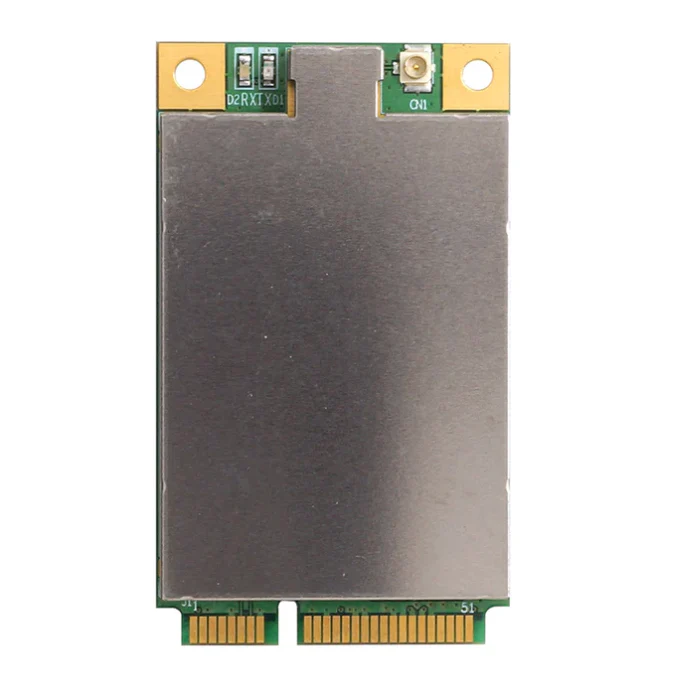

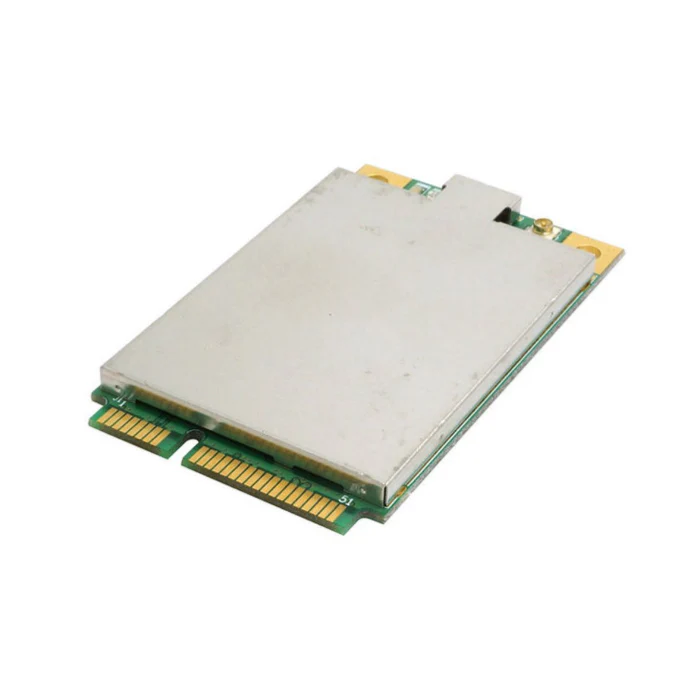

AHMC7292S is world's first WiFi HaLow™ mini PCIe module

The AHMC7292S-US module series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands. WiFi HaLow™ enables connectivity for many applications, including sensors and wearables.

With support for standalone and host based modes, up to 15 Mbps data throughput and complete SDK, getting started with this new WiFi standard will be straightforward.

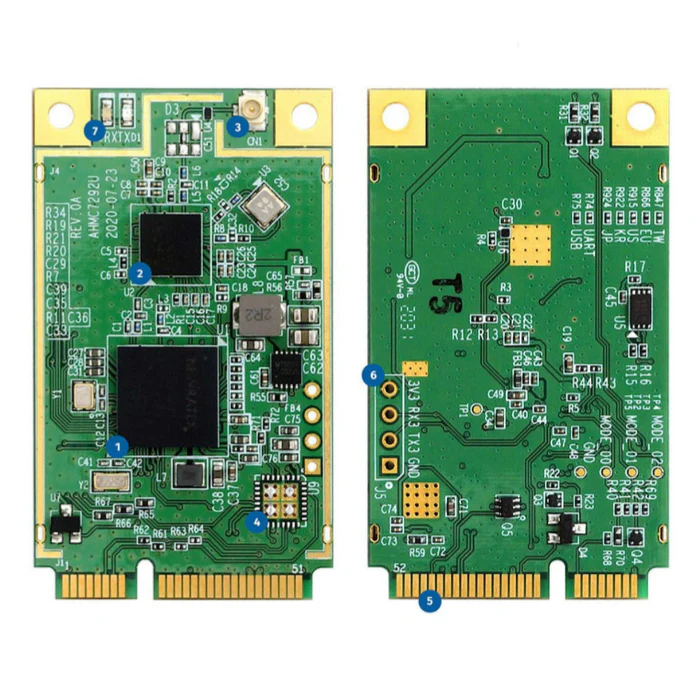

1. Newracom™ NRC7292 WiFi HaLow™ SOC (IEEE 802.11ah draft 8.0 compliant) 1
2. Qorvo™ RFFM6901 front-end
3. IPEX/U.FL antenna connector
4. USB to UART bridge (AHMC7292SU)
5. Full-size mini PCIe form factor
6. Connector for UART3
7. 2× LED

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.

Specifications :

Part/Model #: AHMC7292S Newracom NRC7292
Country of Origin: Taiwan
Manufacturer : Alfa Network Inc.

Parameter	Value
Chipset	Newracom™ NRC7292
Frequency	915 MHz (US)
Modulation	OFDM with BPSK, QPSK, 16QAM, 64QAM
Data rate	150 Kbps ~ 15 Mbps
Channel bandwidth	1/2/4 MHz
Antenna connector	1× IPEX/U.FL
Interfaces	SPI UART I C USB (AHMC7292SU)
LED	1× TX 1× RX
Form factor	full-size mini PCIe
Dimensions	30 × 51 × 4 mm
Software	https://github.com/newracom/
