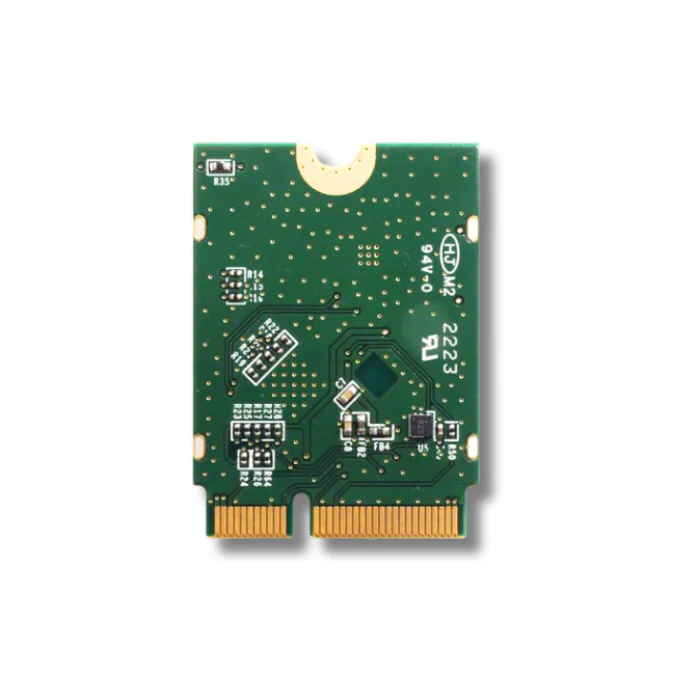

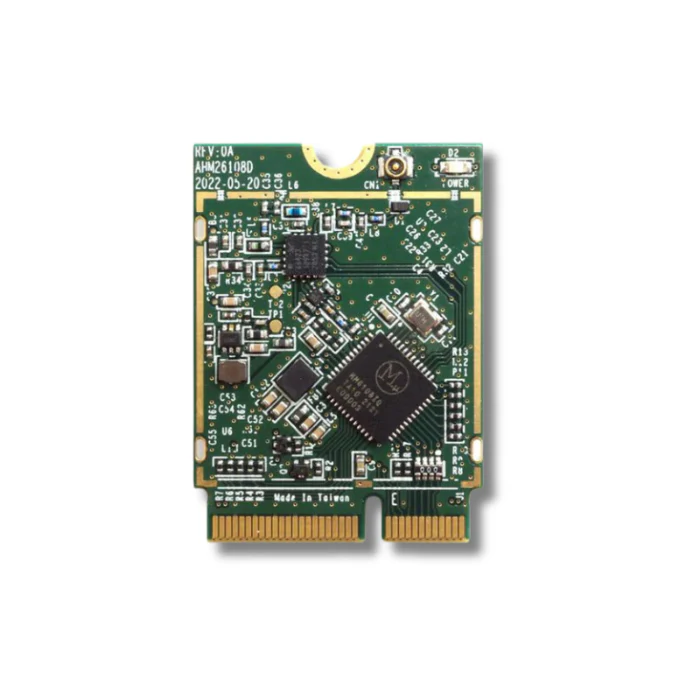

ALFA Network AHM26108D WiFi HaLow™ industrial M.2 module
AHM26108D is a WiFi HaLow™ industrial M.2 module
The AHM26108D allows building longrange, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing compact M.2 2230 form factor.
The AHM26108D data rate up to 32.5 Mbps which better than LoRa 38.4 kbps with the high-speed data rate, it enables connectivity for many applications, including sensors, weather stations, industrial monitoring system, patient monitoring, agriculture monitoring system, security cameras.
Key features:
- Morse Micro MM6108 HaLow chipset
- IPEX4 (MHF4) antenna connector
- LED
-
M.2/NGFF E-key
Specifications
|
Chipset |
Morse Micro MM6108 |
|
Frequency
|
915 MHz (US) 866 MHz (EU) |
|
Modulation |
OFDM with BPSK, QPSK, 16QAM, 64QAM |
|
Date rate |
Up to 32.5 Mbps |
|
Channel bandwidth |
1/2/4/8 MHz |
|
Antenna connector |
1x IPEX 4 (MHF4) |
|
Host interface
|
SDIO UART |
|
LED |
Power |
|
Form factor |
M.2/NGFF E-key |
|
Dimensions |
22 x 30 mm (0.87 x 1.18 inches) |
|
Operating temperature |
-20° C to 60° C (-4° F to 140° F) |
M.2/NGFF slot pinout
