ALFA ADPX-WiFi-2UFL passive bidirectional diplexer module for dual-band 2x2 to 2× 2x2 single-band WiFi

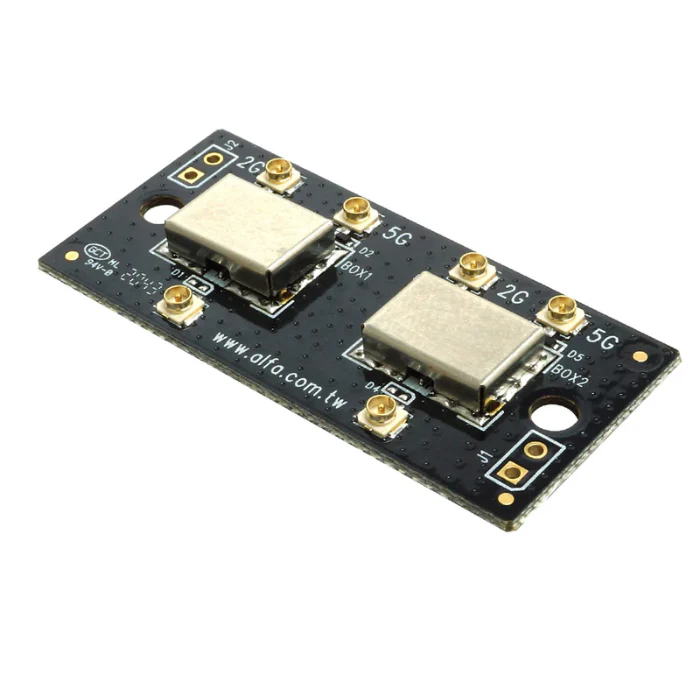

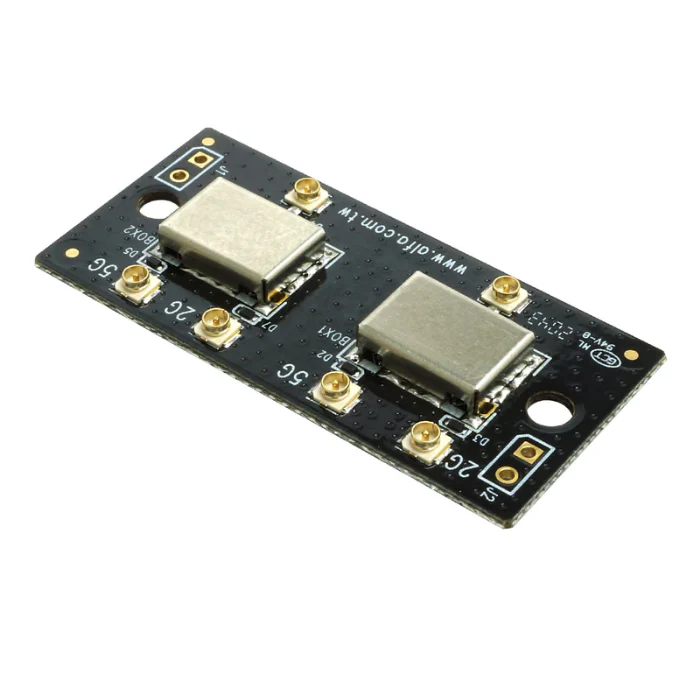

ADPX-WiFi-2UFL is a bidirectional diplexer module for WiFi systems
The ADPX-WiFi-2UFL allows splitting of dual band (2.4 and 5 GHz) WiFi signal from a single 2x2 radio into separated single-band 2.4 and 5 GHz antennas. The module is bidirectional thus a reversed operation is also possible.
Low signal insertion loss, passive operation, without additional power supply and compact size simplify integration with any WiFi system.
| Parameter | Value |
|---|---|
| Antenna connectors | 6× IPEX/U.FL |
| Maximum input power per port | 33 dBm |
|
Insertion loss (common ↔ single-band port) |
< 1.0 dB (2.4 GHz) < 2.0 dB (5 GHz) |
| Common port return loss |
< -20 dB (2.4 GHz) < -10 dB (5 GHz) |
| Isolation between 2.4 and 5 GHz ports | > 20 dB |
| Mounting holes | ∅ 3.2 mm, spacing 35.8 mm |
| Dimensions | 43 × 20.3 × 3.6 mm |
Datasheet:
http://rokland.com/support/specs/alfa-network_adpx-wifi-2ufl_latest.pdf
