ALFA 7 dBi AOA-2471-75AM Tri Band 2.4/5/6 GHz Outdoor N-Male WiFi Omni Antenna
ALFAĀ Network AOA-2471-75AM is a new TAA-compliant tri-band 7 dBi gain omni-directional 2.4/5/6 GHz Wi-Fi antenna with N-male connector. The gain is 7 dBi for 2.4 GHz and 5 dBi for 5/6GHz. This has a weatherproof casing. This does not come with a mounting bracket.
WiFi 6/6E compatible
This is an antenna only, not a standalone Wi-Fi radio and cannot be used by itself to pick up Wi-Fi signals. It must be connected to a compatible Wi-Fi radio or transmitter. To get tri-band capability, you must connect it to a tri-band capable Wi-Fi receiver or transmitter- this cannot transform a single-band radio into a tri-band device.

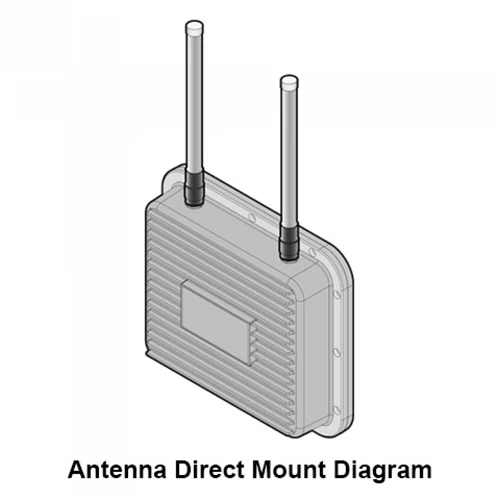

With its N-male connector, this can be connected directly to a variety of outdoor WiFi products that have a compatible connector. Contact our sales team for more information about compatible extension cables and pigtails for use with your particular WiFi receiver or see below for links. This antenna was designed for direct connection to a WiFi receiver or transmitter and does not have a mounting bracket.
We do recommendĀ RokTapeĀ to seal all outdoor connection points.Ā
| Frequency Range | 2400 - 2500 MHz 5150 ā 7125 MHz |
| Gain | 7 dBi@ 2400 - 2500 MHz 5 dBi@ 5150 ā 7125 MHz |
| V.S.W.R | ā¤ 2.0 |
| Radiation | Omni Direction |
| Impedance | 50 Ī© |
| Connector | N male |
| Dimensions | Ć 22 x 323 mm |
| Weight | 108 g |
| Temperature | ā 40 ā to 80 ā |
| Humidity | 95 ļ¼ @ 25 ā |
VSWR
Ā
2D Diagram
Ā
Radiation Pattern
Ā
Ā
Ā
