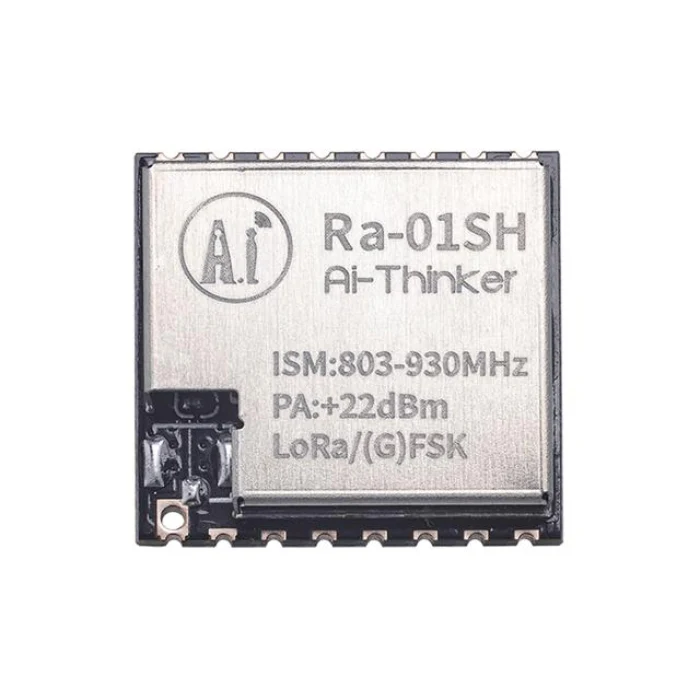

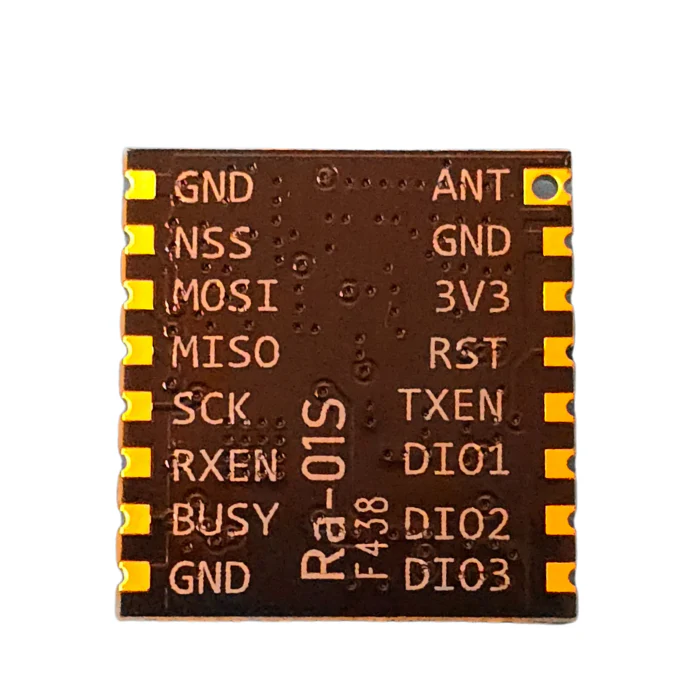

Ai Thinker Ra-01SH LoRa Module - Long-Range Wireless Communication
The Ra-01SH LoRa module, designed and developed by Ai-Thinker, enables ultra-long-distance spread spectrum communication for your IoT projects. Utilizing Semtech's LoRa™ modulation technology, this module offers exceptional anti-interference capabilities while minimizing power consumption. Ideal for applications like automatic meter reading, home automation, security systems, and remote irrigation, the Ra-01SH provides reliable and robust wireless connectivity.
Key Features:
- LoRa™ Modem: Enables long-range communication with high sensitivity.
- Multi-Modulation Support: Compatible with FSK, GFSK, MSK, GMSK, LoRa™, and OOK modulation methods.
- Frequency Band: Operates in the 903MHz~927MHz frequency band.
- Power Output: Up to +22dBm with a working voltage of 3.3V (2.7V-3.6V range).
- Low Power Consumption: Receiving current as low as 4.2mA and standby current of 1.6mA.
- High Sensitivity: Down to -140dBm.
- Compact Design: Small volume dual row stamp hole patch package (SMD16).
- SPI Interface: Half-duplex communication with CRC, up to 256-byte packet engine.
Technical Specifications:
- Model: Ra-01SH
- Package: SMD16
- Size: 17*16*3.2(±0.2)MM
- Antenna: Compatible with half-hole pads/through-hole pads (need to solder the antenna)/IPEX socket
- Frequency Range: 903MHz~927MHz
- Operating Temperature: -40 ℃ ~ 85 ℃
- Storage Environment: -40 ℃ ~ 125 ℃ , < 90%RH
- Power Supply: 2.7~3.6V, default 3.3V, current ＞ 200mA
- Interface: SPI
- Programmable Bit Rate: Up to 300kbps
Application Areas:
- Automatic Meter Reading
- Home and Building Automation
- Security Systems
- Remote Irrigation Systems
- IoT Devices
Additional Information:
- Requires careful handling due to being an electrostatic sensitive device (ESD).
- Ensure proper antenna installation, keeping it away from metal parts.
- Recommended power supply: 3.3V with peak current above 200mA.
- GPIO ports: Use with 10-100 ohm series resistors for stability and protection.
Important Documents: Ra-01SH Datasheet
