***WARNING BATTERIES CAN ONLY BE SHIPPED VIA GROUND***

Check polarity match (red and black cable order)- this has polarity for most LILYGO and Heltec dev boards.

Specification:

Choose from 1100, 2000, 3000, 4000, or 8000 mAh capacity in the dropdown menu.

• Standard voltage-
• 3.7V
• Capacity-
• 1100, 2000, 3000, 4000, or 8000 mAh
• Approximate weight-
• 1100 mAh: 19g
• 2000 mAh: 35g
• 3000 mAh: 35g
• Dimensions-
• 1100 mAh: (±2mm)0 49*28*7.8mm / 1.85*1.10*0.31inch(L*W*H)
• 2000mAh: (±2mm): 50*34*10 mm /1.96*1.33*0.39inch(L*W*H)

• 3000 mAh: (±2mm): 67*36*12 mm /2.80*1.50*0.50inch(L*W*H)
• 4000 mAh: (±2mm): 66*40*11.1 mm /2.60*1.57*0.44inch(L*W*H)
• 8000 mAh: (±2mm): 91.4*59.4*13.1 mm /3.60*2.34*0.52inch(L*W*H)
• Discharge rate-
• 1C
• Working current-
• 1.5A
• Maximum discharge current-
• 3C
• Overcurrent protection-
• 1.8-2.1A
• Connector Type-
• Micro JST 1.25

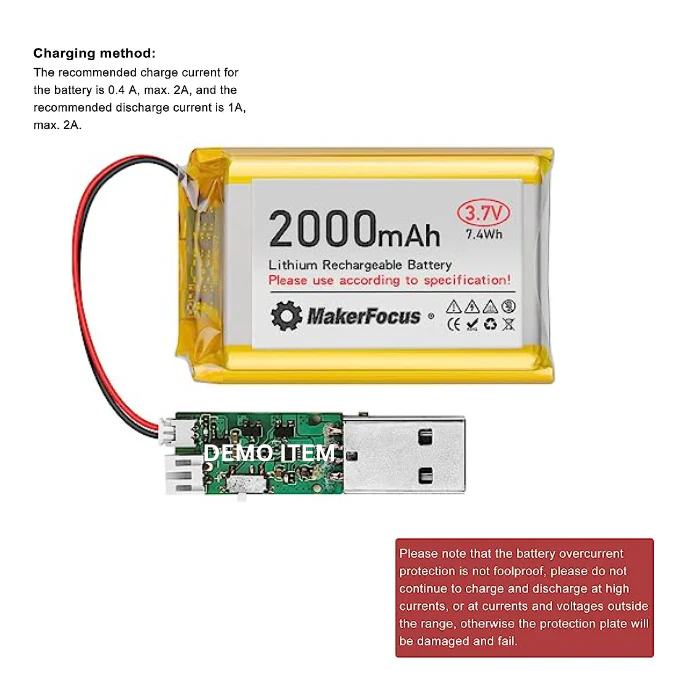

Standard charging method: Charge the battery to 4.25V with a constant current of 0.2C, and then charge it with a constant voltage of 4.2V until the charging current is less than or equal to 0.05C.
