This display with the single chip TFT-LCD controller FT6336 from FocalTech has a 320x240 pixel resolution, full 262k colors and a touch screen enhances the WisBlock Display category. Create colorful data visualizations with this display, use the touch screen as user interface to control functions and devices, the possible applications are endless.

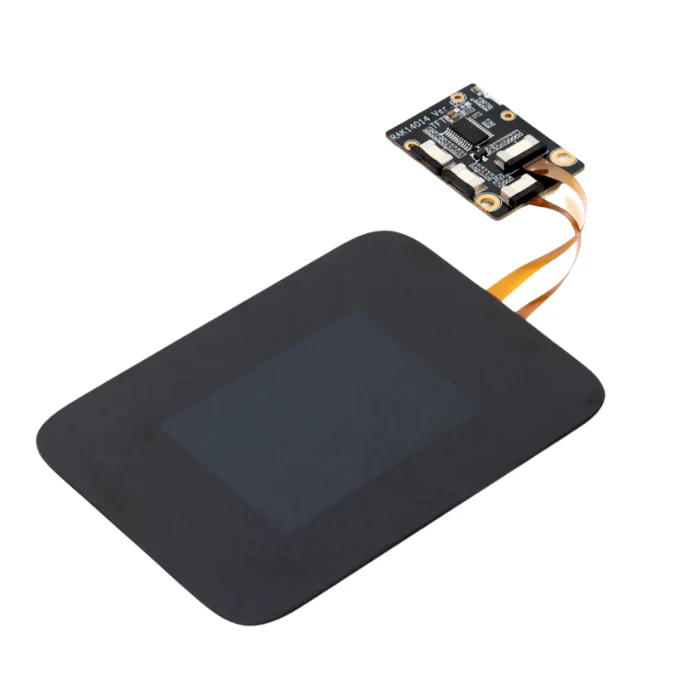

For easier use, the TFT display is already mounted to a protective glass that makes it easy to mount it in our Unify enclosure.

Features

• 240x320 pixels display
• IPS TFT-LCD
• Full view direction
• Display Colors (Color Mode)
• Full Color: 262K, RGB = (666) max., Idle Mode Off
• Color Reduce: 8-color, RGB = (111), Idle Mode On
• The backlight type is 4*LED (white)
• Single chip TFT-LCD Controller/Driver with On-chip Frame Memory (FM)
• Wide Supply Voltage Range
• I/O Voltage (VDDI to DGND): 1.65V ~ 3.3V (VDDI ≦ VDD )
• Analog Voltage (VDD to AGND): 2.4V ~ 3.3V
• SPI interface
• Operate temperature range: -30℃ to +85℃
• Module size 25x35mm
• Display size 2.4 inch

Included in the package:

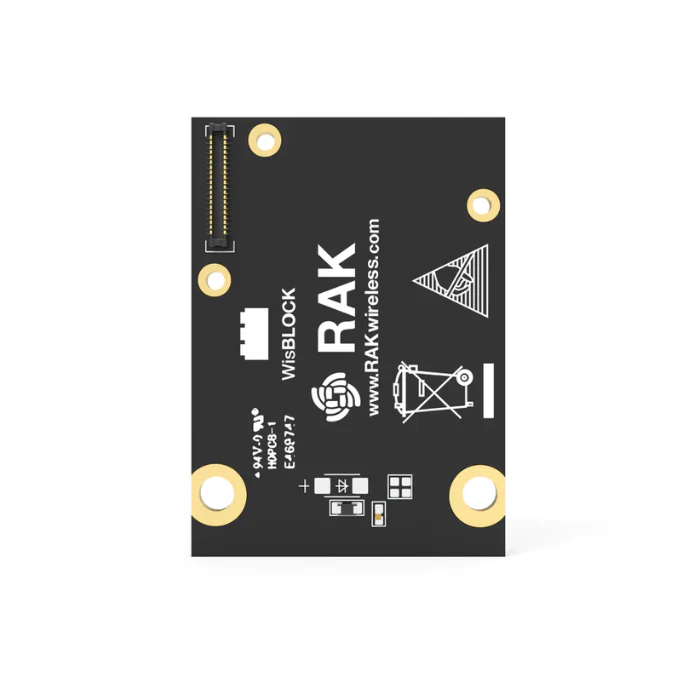

• 1 pc RAK14014
• 1 pc 240x320 TFT Display

Documentation

• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository
• RAK14014 3D Model
• 40-Pin Male Connector 3D file
• WisBlock IO Tutorial

Tutorials

• WisBlock Starter Kit and RAK Edge Gateway Complete LoRaWAN Guide
• Installation of Board Support Package in Arduino IDE
• The Icing on the Cake: A Template to Innovate Custom IoT Applications with RAKwireless and Datacake
